SELECT A DIAGRAM

02 - Control Panel


03 - Cook Top

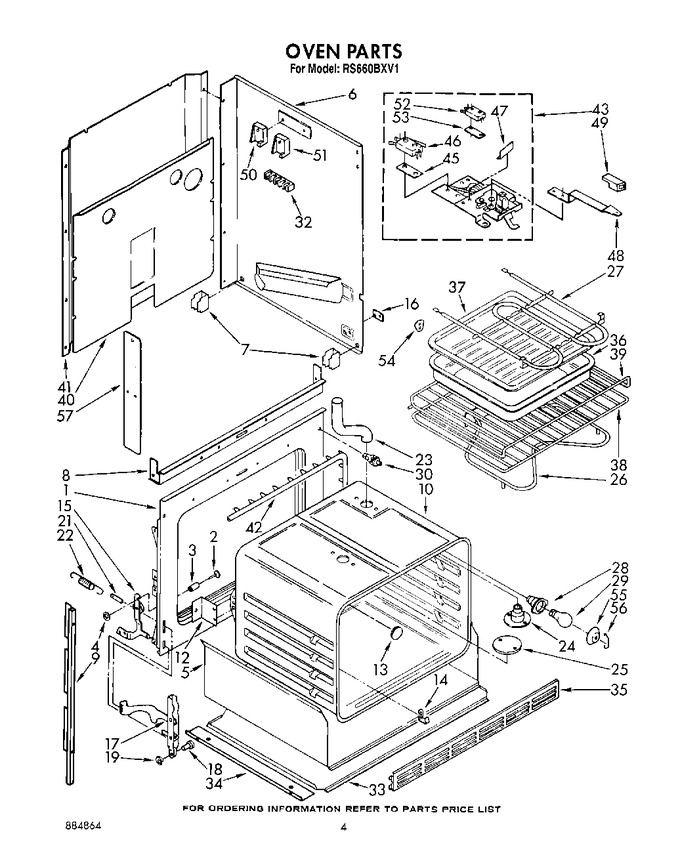

04 - Oven


05 - Oven Door, Lit/optional


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172194		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	311006		Side Wrapper (right Side)		Appelez-nous	-
6	311009		Side Wrapper (left Side)		Appelez-nous	-
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
8	310693		Baffle, Top Insulation		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	310689		Side Trim L.s.		Appelez-nous	-
9	310685		Side Trim R.s.		Appelez-nous	-
10	311056		Screw (3)		Appelez-nous	-
10	3172450		Oven 30``		Appelez-nous	-
12	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
17	329713		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Retainer Ring (2)		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
23	310835		Extension, Vent		Appelez-nous	-
24	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	310839		Eliminator, Smoke		Appelez-nous	-
25	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
25	310662		Plate, Cover		Appelez-nous	-
26	WP308180		Unit, Bake   (Replaces: 661170)				$ 96.92
26	WP308180		Unit, Bake (alt.)   (Replaces: 313827)				$ 96.92
26	WP308180		Unit, Bake (alt.)   (Replaces: 308180)				$ 96.92
27	WP660579		Unit, Broil (alt.)   (Replaces: 311713)				$ 140.80
27	WP660579		Unit, Broil (alt.)   (Replaces: 311714)				$ 140.80
27	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
28	660556		Socket, Oven Light		Appelez-nous	-
28	310208		Socket, Oven Light (alt.)			Immediately	$ 36.34
28	307856		Socket, Oven Light (alt.)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	310345		Switch, Door				$ 94.86
32	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
32	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
33	310458		Cover, Bottom & Top		Appelez-nous	-
34	311592		Angle, Support (2)		Appelez-nous	-
34	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
35	310668		Grill, Bottom				$ 556.11
35	309029		Screw, Black 8-15 X 1/2 (3)		Appelez-nous	-
36	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
37	4396923		Grill, Broiler Pan   (Replaces: 3147563)			Immediately	$ 52.04
38	308173		Rack, Oven (straight)		Appelez-nous	-
39	308172		Rack, Oven (offset)		Appelez-nous	-
40	3149542		Panel, Back		Appelez-nous	-
40	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
41	311012		Cover, Rear		Appelez-nous	-
41	WP488729		Screw (12) 8-18 X 1/2 (12)   (Replaces: 3148107)			Immediately	$ 7.01
42	3148284		Seal, Door		Appelez-nous	-
43	3171148		Latch & Switch Assembly		Appelez-nous	-
45	309245		Insulator, Switch		Appelez-nous	-
46	98106		Screw (2)		Appelez-nous	-
46	308185		Safety Switch		Appelez-nous	-
47	311056		Screw (2)		Appelez-nous	-
47	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
47	309258		Screw (2)		Appelez-nous	-
47	313035		Terminal, Shield		Appelez-nous	-
48	308422		Screw (2)		Appelez-nous	-
48	310825		Latch, Handle		Appelez-nous	-
49	311253		Knob, Latch Handle		Appelez-nous	-
49	246135		Screw		Appelez-nous	-
50	314215		Screw		Appelez-nous	-
50	314209		Switch, Broil		Appelez-nous	-
51	314215		Screw		Appelez-nous	-
51	314210		Switch, Bake		Appelez-nous	-
52	3148669		Switch, Lock		Appelez-nous	-
53	3147864		Insulator, Switch		Appelez-nous	-
54	311982		Coverplate (2)		Appelez-nous	-
54	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.01
55	308039		Cover, Light		Appelez-nous	-
56	308043		Screw (2)		Appelez-nous	-
56	308038		Retainer, Light		Appelez-nous	-
57	3148442		Screw (2)		Appelez-nous	-
57	311256		Baffle		Appelez-nous	-
	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
	3150532		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
