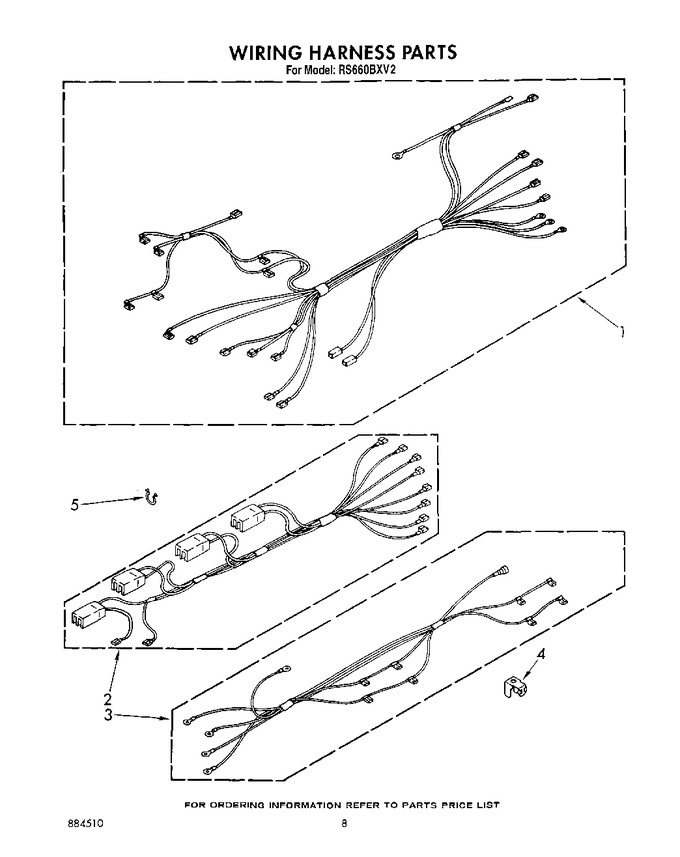

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148596 | Harness, Wire (oven) |
|
- | |||||
| 2 | 3147828 | Harness, Wire (surface Unit) |
|
- | |||||
| 3 | 313464 | Harness, Wire (infinite Switch) |
|
- | |||||
| 4 | 3147832 | Adaptor, Terminal |
|
- | |||||
| 5 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| 5 | 308504 | Screw (2) |
|
- |
