SELECT A DIAGRAM

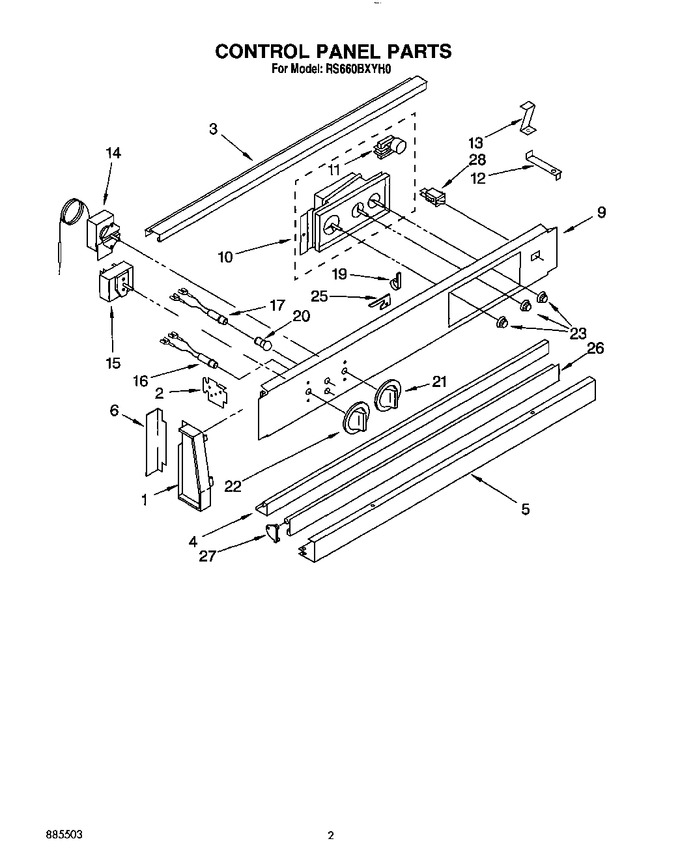

02 - Control Panel


03 - Cooktop


04 - Oven, Lit/optional


05 - Oven Door, Optional


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148444		End Cap (r.h.)		Appelez-nous	-
1	3148445		End Cap (l.h.)		Appelez-nous	-
2	3149028		Cover, Side (left Side)		Appelez-nous	-
2	3149027		Cover, Side (right Side)		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
3	98520		Screw (2)		Appelez-nous	-
4	3181929		Trim, Center		Appelez-nous	-
4	98520		Screw (2)		Appelez-nous	-
5	3148618		Rail, Bottom		Appelez-nous	-
6	3149900		Trim, End Cap		Appelez-nous	-
9	3183340		Panel, Control		Appelez-nous	-
10	3183342		Timer, Auto		Appelez-nous	-
10	98520		Screw (2)		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	WP965173		Screw,   (Replaces: 246132)			Immediately	$ 9.65
12	312752		Support, Top Rail		Appelez-nous	-
13	3184395		Bracket, Support		Appelez-nous	-
13	98520		Screw		Appelez-nous	-
14	WP313808		Screw (2)   (Replaces: 311932)				$ 6.84
14	3148933		Thermostat, Oven				$ 181.60
15	3148419		Switch, Selector (5 Position)		Appelez-nous	-
15	4159448		Screw (2)		Appelez-nous	-
16	314031		Light, Indicator (250v)				$ 62.88
17	3148719		Light, Indicator		Appelez-nous	-
19	488946		Clamp, Wire   (Replaces: 255564)				$ 18.41
19	98520		Screw		Appelez-nous	-
20	313101		Lens, Amber (2)		Appelez-nous	-
21	3183103		Knob, Thermostat		Appelez-nous	-
22	3183115		Knob (selector)				$ 23.60
22	WP688805		Spring   (Replaces: 688805)			Immediately	$ 7.03
23	3169181		Knob, Timer (3)				$ 13.69
25	3149142		Shield, Air		Appelez-nous	-
25	98520		Screw		Appelez-nous	-
26	3183505		Door, Vent		Appelez-nous	-
27	3148697		End, Trim (left Hand)		Appelez-nous	-
27	3148698		End, Trim (right Hand)		Appelez-nous	-
28	3182717		Switch, Rocker		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
