01 - Control Panel, Literature
02 - Oven
03 - Oven Door
04 - Cooktop
05 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:

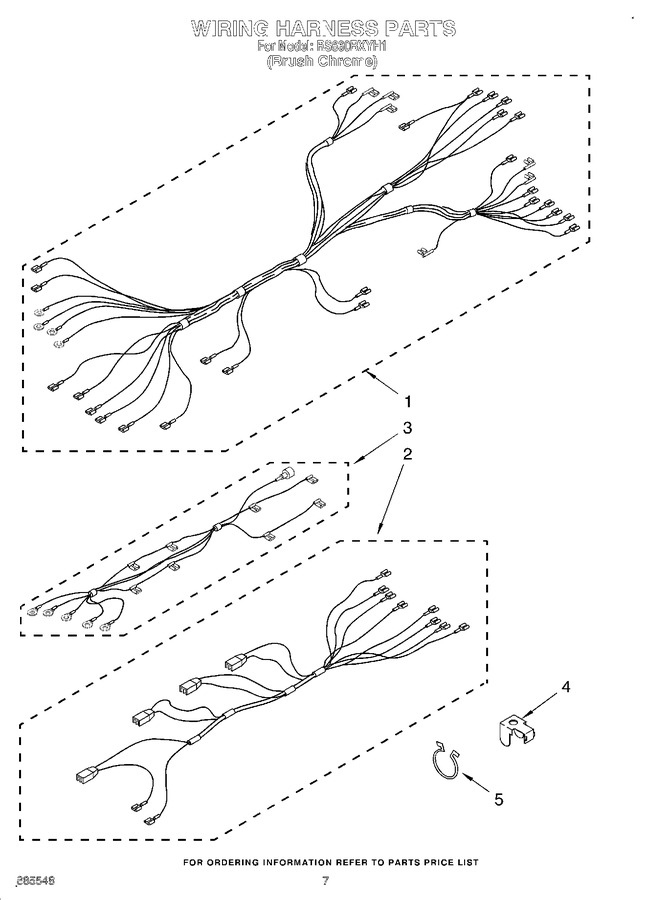

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3182744 | Harness, Wire (oven) |
|
- | |||||
| 2 | 3147828 | Harness, Wire (surface Unit) |
|
- | |||||
| 2 | 166681 | Screw |
|
- | |||||
| 3 | 313464 | Harness, Wire (infinite Switch) |
|
- | |||||
| 4 | 3147832 | Adaptor, Terminal |
|
- | |||||
| 5 | 308504 | Screw (2) |
|
- | |||||
| 5 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 5 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 5 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 5 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 5 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 5 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 5 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 5 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 5 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 5 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 5 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 5 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 5 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 5 | 261888 | New Avocado |
|
- | |||||
| 5 | 261886 | Coffee |
|
- | |||||
| 5 | 261890 | Harvest Gold |
|
- | |||||
| 5 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 5 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 5 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 5 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 5 | 978883 | Almond (uncut) |
|
- | |||||
| 5 | 261889 | New Avocado (uncut) |
|
- | |||||
| 5 | 261887 | Coffee (uncut) |
|
- | |||||
| 5 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 5 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 5 | 261810 | Touch-up, Oven (1/2 Pt.) |
|
- | |||||
| 5 | 261582 | Grease |
|
- | |||||
| 5 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 5 | 814128 | Anti-tip Kit |
|
- | |||||
| 5 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 5 | 3171507 | Mounting Hardwar |
|
- | |||||
| 5 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 5 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 5 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 5 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| 5 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 5 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 5 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 5 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- |
