View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel, Literature
02 - Oven
03 - Oven Door

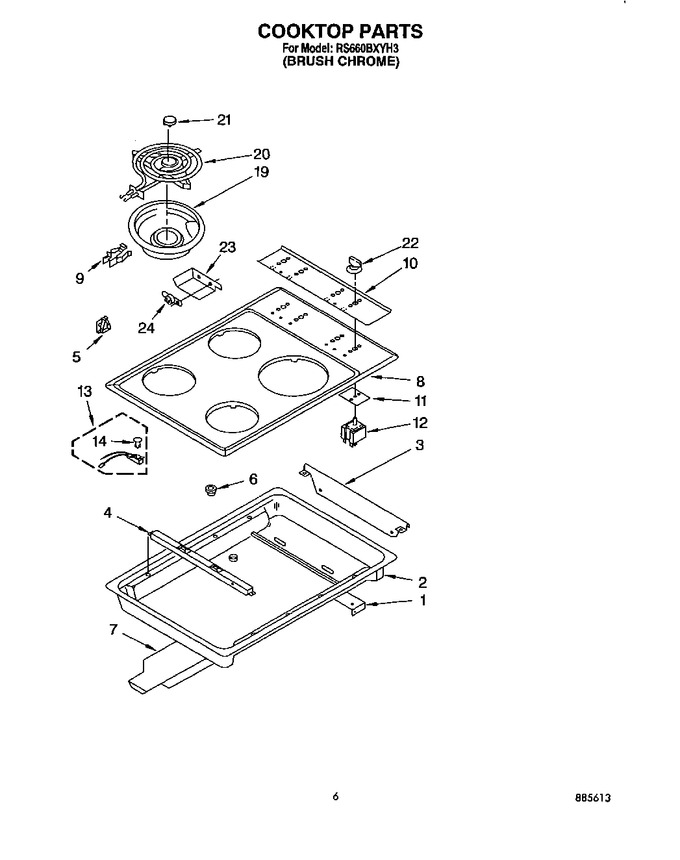

04 - Cooktop
05 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310718 | Support, Burner Box (2) |
|
- | |||||
| 1 | WP488729 | Screw, 8-18 X 1/2 (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 2 | 311021 | Box, Burner |
|
- | |||||
| 3 | WP488729 | Screw (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 3 | 310716 | Shield, Switch |
|
- | |||||
| 4 | 342043 | Screw (2) |
|
- | |||||
| 4 | 310717 | Support, Cooktop |
|
- | |||||
| 4 | WP488729 | Screw (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 5 | 814103 | Clip, Hold Down (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 6 | 258109 | Bushing |
|
- | |||||
| 7 | 312318 | Screw, |
|
- | |||||
| 7 | WP488729 | Screw (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 7 | 3147565 | Cover, Top Rear |
|
- | |||||
| 8 | 814103 | Clip, Top Hold Down (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 8 | WP488729 | Screw, 8-18 X 1/2 (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 8 | 3183904 | Cooktop (brushed Chrome) |
|
- | |||||
| 9 | 330031 | Clip, Receptacle (4) (Replaces: 312606) |
|
Immediately | $ 14.48 | ||||
| 10 | 3185692 | Panel, Control |
|
- | |||||
| 11 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 12 | 155023 | Switch, Infinite (screw,) |
|
Immediately | $ 7.91 | ||||
| 12 | 3148968 | Switch, Infinite (use W/6`` Surface Unit (2)) |
|
- | |||||
| 12 | WP3148966 | Switch, Infinite (use W/8`` Surface Unit (2)) (Replaces: 3148966) |
|
$ 130.35 | |||||
| 13 | 313462 | Indicator Light (2) (includes Lens No. 313602) |
|
- | |||||
| 14 | 313602 | Lens, Light |
|
- | |||||
| 19 | WPW10196406 | Reflector Pan 6`` (2) (Replaces: 3150246) |
|
Immediately | $ 12.05 | ||||
| 19 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 3150247) |
|
Immediately | $ 18.70 | ||||
| 20 | WP660532 | Unit, Surface 6`` (includes Illus. 21) (Replaces: 660529) |
|
Immediately | $ 36.90 | ||||
| 20 | WP660533 | Unit, Surface 8`` (includes Illus. 21) (Replaces: 660531) |
|
Immediately | $ 39.47 | ||||
| 21 | 309195 | Medallion, Surface Unit |
|
- | |||||
| 22 | 3183120 | Knob, Control (4) |
|
- | |||||
| 23 | 3147830 | Bracket, Sensor |
|
- | |||||
| 24 | 3185885 | Thermostat |
|
- | |||||
| 24 | WP313808 | Screw, 6-32 (7) (Replaces: 313808) |
|
$ 6.84 |
