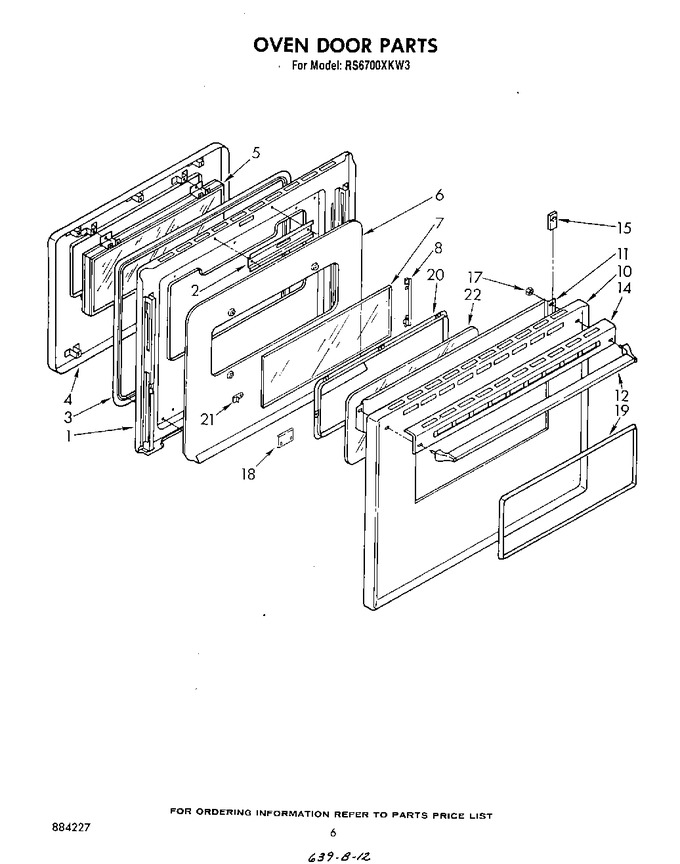

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	329694		Liner, Door		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	327898		Panel, Inner		Appelez-nous	-
5	330038		Window Package		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
6	308021		Retainer, Insulation		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
7	309842		Glass		Appelez-nous	-
8	309843		Retainer, Glass		Appelez-nous	-
10	309133		Panel, Door (screw, 8a X 5/8 (2))		Appelez-nous	-
10	307917		Panel, Door (almond)		Appelez-nous	-
10	313179		Panel, Door (toast)		Appelez-nous	-
10	313180		Panel, Door (platinum)		Appelez-nous	-
10	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
10	307909		Panel, Door (white)		Appelez-nous	-
10	307915		Panel, Door (harvest Gold)		Appelez-nous	-
11	308011		Baffle, Top		Appelez-nous	-
12	311564		Handle, Door		Appelez-nous	-
14	311890		Clip, Top Trim		Appelez-nous	-
14	311063		Trim, Panel		Appelez-nous	-
15	309845		Spacer, Sheet (2)		Appelez-nous	-
17	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
18	311885		Shield (2)		Appelez-nous	-
18	WP90296		Fastener Pushnut (2)   (Replaces: 90296)				$ 7.07
19	309173		Frame, Window		Appelez-nous	-
20	307792		Retainer, Glass		Appelez-nous	-
21	307731		Clip, Frame		Appelez-nous	-
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
22	261582		Grease		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	261825		Console		Appelez-nous	-
22	242985		Rotisserie Kit		Appelez-nous	-
22	307732		Glass, Outer		Appelez-nous	-
22	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	LIT312492		Guide, Use & Care		Appelez-nous	-
	LIT884227		List, Repair Parts		Appelez-nous	-
	LIT313873		Tech Sheet		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311433		Instructions, Installation		Appelez-nous	-
