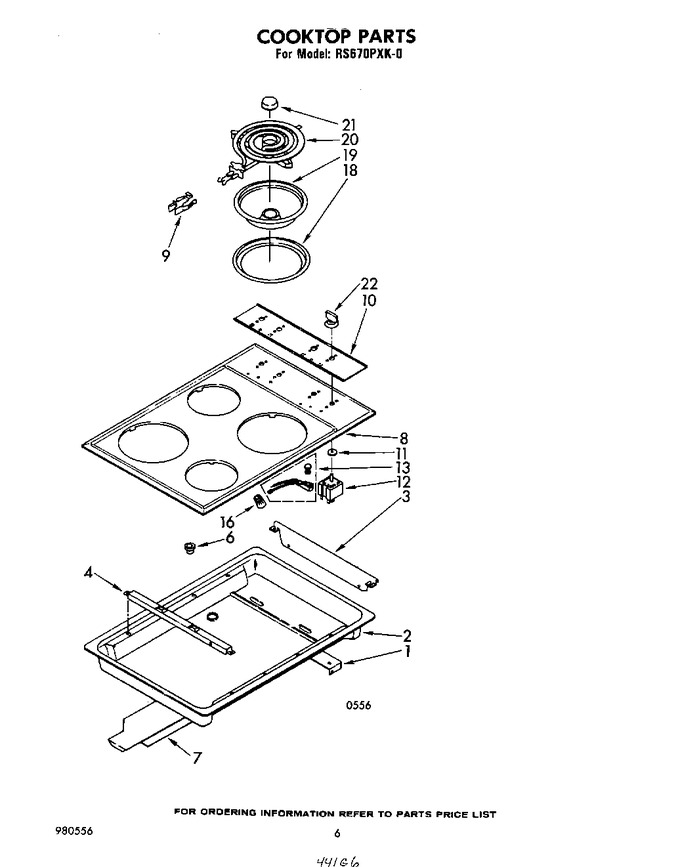

05 - Cooktop , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310718		Support, Burner Box (2)		Appelez-nous	-
1	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
2	311015		Burner Box		Appelez-nous	-
3	310716		Shield, Switch		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
4	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
4	310717		Support, Cooktop		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
7	310627		Cover, Top Rear		Appelez-nous	-
8	342043		Screw (4)		Appelez-nous	-
8	166681		Screw, 10-32 X 5/16 (2)		Appelez-nous	-
8	307492		Cooktop, Brushed Chrome		Appelez-nous	-
9	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
9	330031		Clip, Receptacle (4)   (Replaces: 258858)			Immediately	$ 14.48
10	310837		Panel, Control		Appelez-nous	-
11	309839		Seal, Switch		Appelez-nous	-
12	W10900107		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311837)			Immediately	$ 51.87
12	246406		Switch, Infinite (screw, 8-32 X 5/16 (8))		Appelez-nous	-
12	W10900107		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 311836)			Immediately	$ 51.87
13	311523		Indicator Light (2) (includes Lens)		Appelez-nous	-
16	255673		Connector, Wire		Appelez-nous	-
18	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
18	W10854470		Adapter Ring 6`` (2)   (Replaces: 306785)				$ 81.37
19	W10291024		Reflector Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
19	W10291024		Reflector Pan 6`` (2)   (Replaces: 306789)			Immediately	$ 49.90
20	WP660532		Unit, Surface (6`` Alternate)   (Replaces: 309250)			Immediately	$ 36.90
20	WP660533		Unit, Surface (8`` Alternate (includes Illus. 21))   (Replaces: 309340)			Immediately	$ 39.47
20	WP660532		Unit, Surface (6`` Alternate)   (Replaces: 309334)			Immediately	$ 36.90
20	WP660533		Unit, Surface (8`` Alternate)   (Replaces: 309214)			Immediately	$ 39.47
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	261881		Rotisserie Kit		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
22	261582		Grease		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	311951		Tech Sheet		Appelez-nous	-
22	311433		Installation Instructions		Appelez-nous	-
22	311412		Guide, Use & Care		Appelez-nous	-
22	308500		Book, Cooking Guide		Appelez-nous	-
22	980556		List, Parts		Appelez-nous	-
22	261825		Console		Appelez-nous	-
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	WP330190		Knob, Control (4)   (Replaces: 329404)				$ 38.10
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
