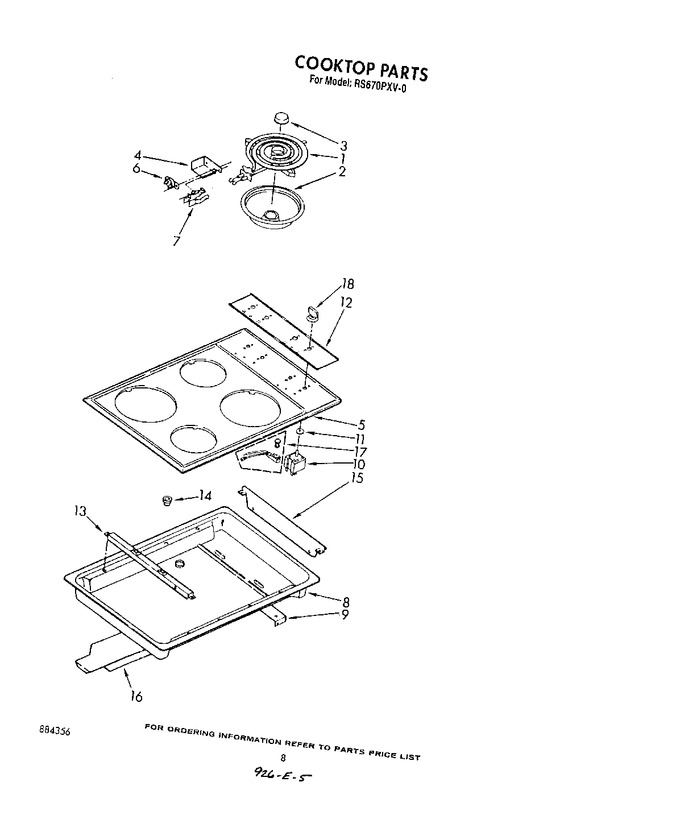

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660532		Unit, Surface (6`` (2))   (Replaces: 660532)			Immediately	$ 36.90
1	WP660533		Unit, Surface (8`` (2))   (Replaces: 660533)			Immediately	$ 39.47
2	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3148357)			Immediately	$ 12.05
2	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3148358)			Immediately	$ 18.70
3	309195		Medallion (4)		Appelez-nous	-
4	3147830		Bracket, Sensor		Appelez-nous	-
5	814103		Clip, Top (4)   (Replaces: 3148790)				$ 9.02
5	3148746		Cooktop		Appelez-nous	-
5	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
6	WP313808		Screw (3)   (Replaces: 313808)				$ 6.84
6	3147833		Thermostat				$ 0.01
7	WP313808		Screw (4)   (Replaces: 311932)				$ 6.84
7	330031		Clip, Receptacle Receptacle (4)   (Replaces: 3147829)			Immediately	$ 14.48
8	311019		Box, Burner		Appelez-nous	-
9	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
9	310718		Support, Burner		Appelez-nous	-
10	3148947		Switch, Infinite (8`` (2))		Appelez-nous	-
10	W10900107		Switch, Infinite (6`` (2))   (Replaces: 3148948)			Immediately	$ 51.87
10	WP486579		Switch, Infinite (screw (8))   (Replaces: 311865)				$ 6.61
11	309839		Seal, Shaft (4)		Appelez-nous	-
12	3148704		Panel, Control		Appelez-nous	-
13	310717		Bracket, Mounting		Appelez-nous	-
13	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
13	342043		Screw (2)		Appelez-nous	-
14	258109		Bushing (4)		Appelez-nous	-
15	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.01
15	311019		Shield, Switch		Appelez-nous	-
16	3147565		Cover, Rear		Appelez-nous	-
16	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
17	313662		Lens		Appelez-nous	-
17	313461		Light, Indicator (4) Includeds:		Appelez-nous	-
18	3148161		Knob, Control (4)		Appelez-nous	-
