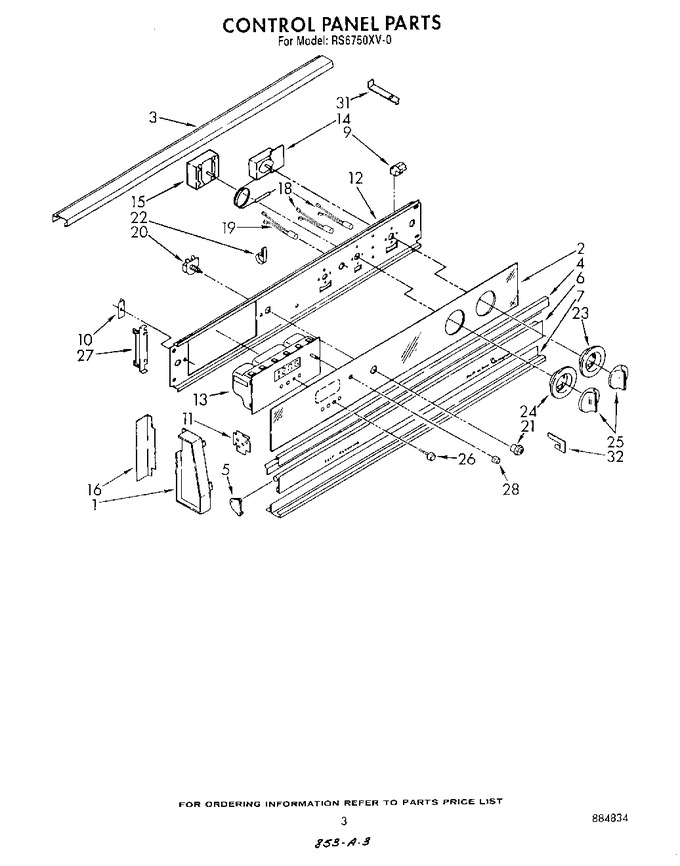

03 - Control Panel


04 - Oven


05 - Wiring Harness , Lit/optional


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98520		Screw (4)		Appelez-nous	-
1	307748		Screw No.10x1/2 (2)		Appelez-nous	-
1	3148445		End Cap (l.h.)		Appelez-nous	-
1	3148444		End Cap (r.h.)		Appelez-nous	-
2	3148636		Glass, Panel		Appelez-nous	-
3	98520		Screw (2)		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3148620		Trim, Center		Appelez-nous	-
5	3148698		End Trim, Vent (l.h.)		Appelez-nous	-
5	3148697		End Trim, Vent (r.h.)		Appelez-nous	-
6	342043		Screw (2)		Appelez-nous	-
6	3148617		Door, Vent		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
7	342043		Screw (4)		Appelez-nous	-
9	3149882		Retainer, Glass (4)		Appelez-nous	-
10	98520		Screw		Appelez-nous	-
10	313864		Bracket, Timer (2)		Appelez-nous	-
11	3149027		Cover, Side R.h.		Appelez-nous	-
11	3149028		Cover, Side L.h.		Appelez-nous	-
12	330500		Bracket, Control		Appelez-nous	-
13	3149806		Timer, Digital (includes Knobs)		Appelez-nous	-
14	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
14	3148934		Thermostat, Oven		Appelez-nous	-
15	310006		Selector Switch		Appelez-nous	-
15	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
16	3149900		Trim, End Cap		Appelez-nous	-
18	311802		Indicator Light (2) Oven On Clean On		Appelez-nous	-
19	3148720		Indicator, Light (locked)		Appelez-nous	-
20	312581		Switch, Oven Light		Appelez-nous	-
20	98520		Screw		Appelez-nous	-
20	312796		Washer		Appelez-nous	-
21	313030		Bezel Switch		Appelez-nous	-
22	98520		Screw, 8a X 5/16		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
23	311066		Escutcheon, Thermostat				$ 25.00
24	WP311068		Escutcheon, Selector Switch   (Replaces: 311068)				$ 49.73
24	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
26	313958		Knob, Timer (4)		Appelez-nous	-
27	3148634		Bracket, Control (2)		Appelez-nous	-
28	313523		Knob, Timer (1)				$ 13.66
31	312752		Support, Top Rail		Appelez-nous	-
32	3149142		Shield, Air		Appelez-nous	-
