Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 311019 Burner Box Appelez-nous -
2 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

2 310716 Shield, Switch Appelez-nous -
3 310717 Support, Cooktop Appelez-nous -
3 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

4 WP488729 Cooktop (screw, 8-18 X 1/2 (4))   (Replaces: 313638) In-Stock Immediately $ 7.01

4 3148748 Cooktop (almond) Appelez-nous -
4 3148747 Cooktop (white) Appelez-nous -
5 330031 Clip, Mtg. (4)   (Replaces: 3147829) In-Stock Immediately $ 14.48

6 3148704 Panel, Control Appelez-nous -
7 5500-287 Switch, Infinite (8`` Unit (2))   (Replaces: 3148945) In-Stock Immediately $ 47.15

7 W10900107 Switch, Infinite (6`` Unit (2))   (Replaces: 3148946) In-Stock Immediately $ 51.87

7 WP488729 Switch, Infinite (screw, 8-32 X 5/16 (8))   (Replaces: 3148107) In-Stock Immediately $ 7.01

8 313461 Light, Indicator (includes No. 26) Appelez-nous -
9 312318 Screw, 10-32 X 1/2 Appelez-nous -
11 W10196405RW Pan, Surface (8`` Pan (2))   (Replaces: 3150247) In-Stock Immediately $ 18.70

11 WPW10196406 Pan, Surface (6`` Pan (2))   (Replaces: 3150246) In-Stock Immediately $ 12.05

12 WP660532 Surface Unit (2) 6`` (240v)   (Replaces: 660532) In-Stock Immediately $ 36.90

12 WP660533 Surface Unit (2) 8`` (240v)   (Replaces: 660533) In-Stock Immediately $ 39.47

14 3150373 Knob, Control Appelez-nous -
15 309839 Seal, Switch Shaft (4) Appelez-nous -
16 3147830 Bracket, Sensor Appelez-nous -
17 WP313808 Screw, 6-32 X 1/4 (3)   (Replaces: 313808) Special Order $ 6.84

17 3147833 Thermostat Special Order $ 0.01

18 00487887 Screw (4)   (Replaces: 487887) Special Order $ 220.32

18 814102 Nut (4) Special Order $ 5.27

18 814103 Clip, Retainer (4)   (Replaces: 3148790) Special Order $ 9.02

19 313602 Lens, Light Appelez-nous -
20 310718 Support, Burner Box Appelez-nous -
20 WP488729 Screw (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

21 258109 Bushing Appelez-nous -
22 WP488729 Screw (3)   (Replaces: 313638) In-Stock Immediately $ 7.01

22 3147565 Cover, Top Rear Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

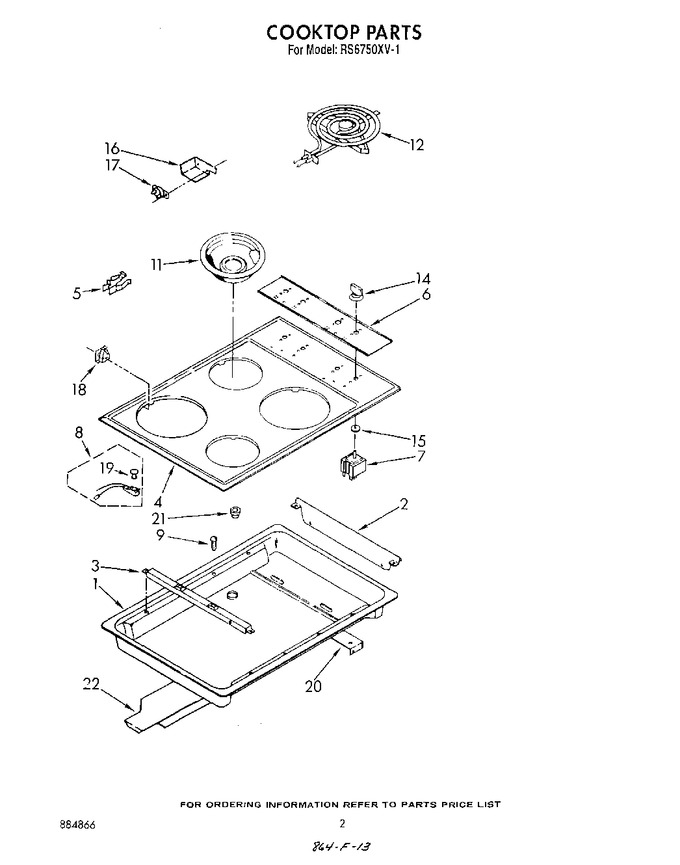

Diagram for RS6750XVN1
