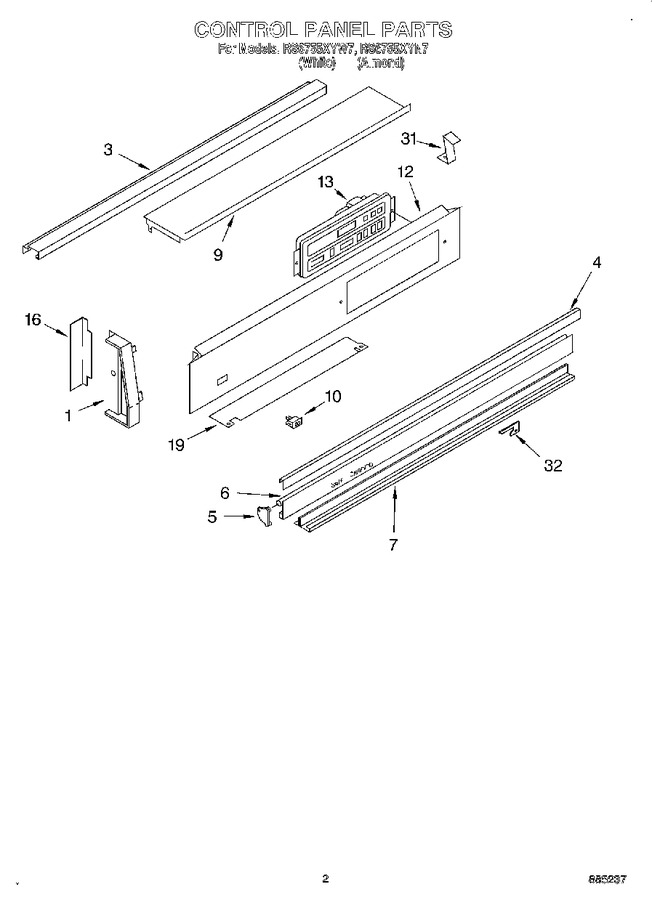

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw No.10x1/2 (2)		Appelez-nous	-
1	3148445		End Cap (l.h.)		Appelez-nous	-
1	3148444		End Cap (r.h.)		Appelez-nous	-
1	98520		Screw (4)		Appelez-nous	-
3	98520		Screw (2)		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3148620		Trim, Center		Appelez-nous	-
5	3148698		End Trim, Vent (l.h.)		Appelez-nous	-
5	3148697		End Trim, Vent (r.h.)		Appelez-nous	-
6	3183505		Door, Vent		Appelez-nous	-
6	342043		Screw (2)		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
7	342043		Screw (4)		Appelez-nous	-
9	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
9	3188534		Shield, Heat		Appelez-nous	-
10	3182717		Switch, Rocker		Appelez-nous	-
12	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
12	3182301		Bracket, Control		Appelez-nous	-
13	3169256		Control, Electronic		Appelez-nous	-
16	3149900		Trim, End Cap		Appelez-nous	-
19	3183992		Shield, Control		Appelez-nous	-
31	3184395		Bracket, Control		Appelez-nous	-
32	3149142		Shield, Air		Appelez-nous	-
