New Model Search:

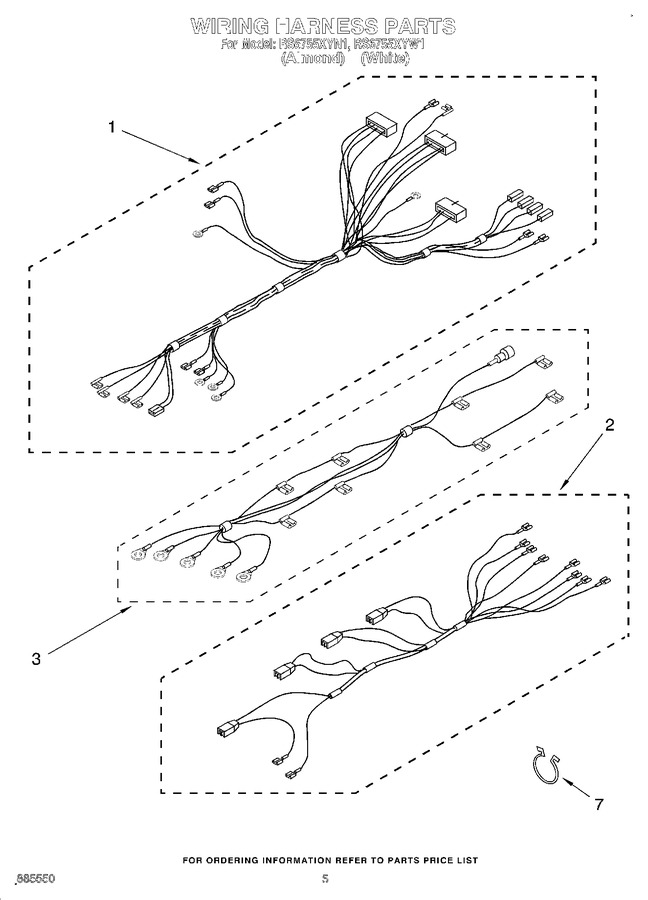

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183289 | Harness, Wire (main) |
|
- | |||||
| 2 | 3147828 | Harness, Wire (surface Elements) |
|
- | |||||
| 3 | 313464 | Harness, Wire (infinite Switch) |
|
- | |||||
| 7 | 16515 | Clip, Harness (2) (Replaces: 313438) |
|
$ 17.60 |
