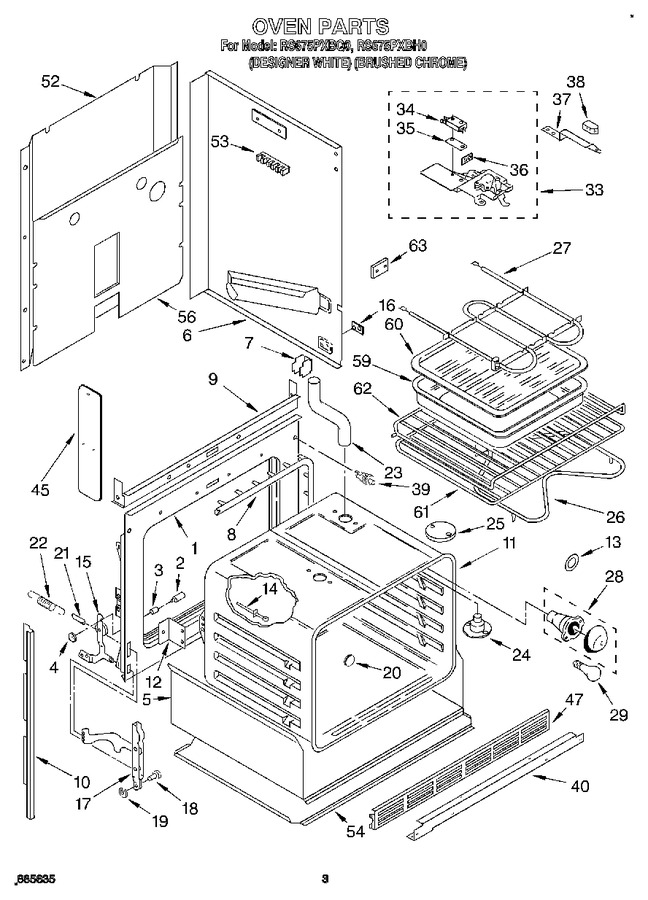

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3176718		Frame Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3185944		Insulation Tray		Appelez-nous	-
6	3185954		Side Wrapper R.h.		Appelez-nous	-
6	WP488729		Screw, 8 X 1/2 (14)   (Replaces: 3148107)			Immediately	$ 7.01
6	3185957		Side Wrapper L.h.		Appelez-nous	-
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
8	3185197		Gasket, Door		Appelez-nous	-
9	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
9	3183796		Baffle, Top Insulation		Appelez-nous	-
10	310689		Side Trim (r.h.)		Appelez-nous	-
10	WP488729		Screw, 8 X 1/2 (8)   (Replaces: 3148107)			Immediately	$ 7.01
10	310685		Side Trim L.h.		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
11	3182032		Oven (30`` Pyro)		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
12	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
12	WP489069		Screw (4)   (Replaces: 693994)			Immediately	$ 7.07
13	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
14	3148440		Sensor, Heat		Appelez-nous	-
15	3185662		Hinge, Ear (right Side)		Appelez-nous	-
15	3185663		Hinge, Ear (left Side)		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
16	310659		Plate, Side Panel (2)		Appelez-nous	-
17	3185664		Channel Arm (2)				$ 54.97
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	3182814		Button, Plug		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	310835		Tube, Vent Extension		Appelez-nous	-
23	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
24	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	310839		Eliminator, Smoke		Appelez-nous	-
24	98520		Screw, 8a X 5/16		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
25	310662		Plate, Cover		Appelez-nous	-
26	WP308180		Unit, Bake   (Replaces: 661170)				$ 96.92
26	3150532		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
27	3150532		Screw, 10-32 X 5/8 (4)		Appelez-nous	-
27	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
28	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
28	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
33	311056		Screw (2)		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
33	3183801		Latch Assembly		Appelez-nous	-
34	3178671		Safety Switch		Appelez-nous	-
34	98106		Screw (2)		Appelez-nous	-
35	309245		Insulator, Switch		Appelez-nous	-
36	309258		Screw, 6 X 3/8 (2)		Appelez-nous	-
36	313035		Terminal, Shield		Appelez-nous	-
37	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
37	310825		Latch, Handle		Appelez-nous	-
38	3183294		Screw, 8-32 X 1/4		Appelez-nous	-
38	3184039		Knob, Latch Handle		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
40	3188431		Bracket, Mounting		Appelez-nous	-
45	311256		Baffle, Insulation		Appelez-nous	-
45	3148442		Screw		Appelez-nous	-
47	309029		Bottom Grill (screw, 8-15 X 1/2 (3))		Appelez-nous	-
47	310668		Bottom Grill (black)				$ 556.11
47	3149359		Bottom Grill (white)		Appelez-nous	-
52	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
52	247326		Screw		Appelez-nous	-
52	3185960		Cover, Rear		Appelez-nous	-
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
53	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
53	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
54	3185945		Cover, Bottom & Top (2)		Appelez-nous	-
56	3182052		Panel, Back		Appelez-nous	-
56	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 3148107)			Immediately	$ 7.01
59	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
60	4396923		Grill, Broiler Pan   (Replaces: 3147563)			Immediately	$ 52.04
61	3185641		Rack, Oven				$ 67.33
62	3185640		Rack, Oven Offset		Appelez-nous	-
63	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.01
63	310435		Insulation, Oven		Appelez-nous	-
63	310433		Insulation, Wrap		Appelez-nous	-
63	3149328		Insulation, Top		Appelez-nous	-
63	3183005		Coverplate (2)		Appelez-nous	-
	LIT3188560		Use & Care Guide		Appelez-nous	-
	LIT3188575		Tech Sheet		Appelez-nous	-
	LIT3147396		Installation Instructions		Appelez-nous	-
