01 - Cooktop
02 - Control Panel
03 - Oven, Lit/optional
04 - Wiring Harness
05 - Oven Door
SELECT A DIAGRAM
New Model Search:

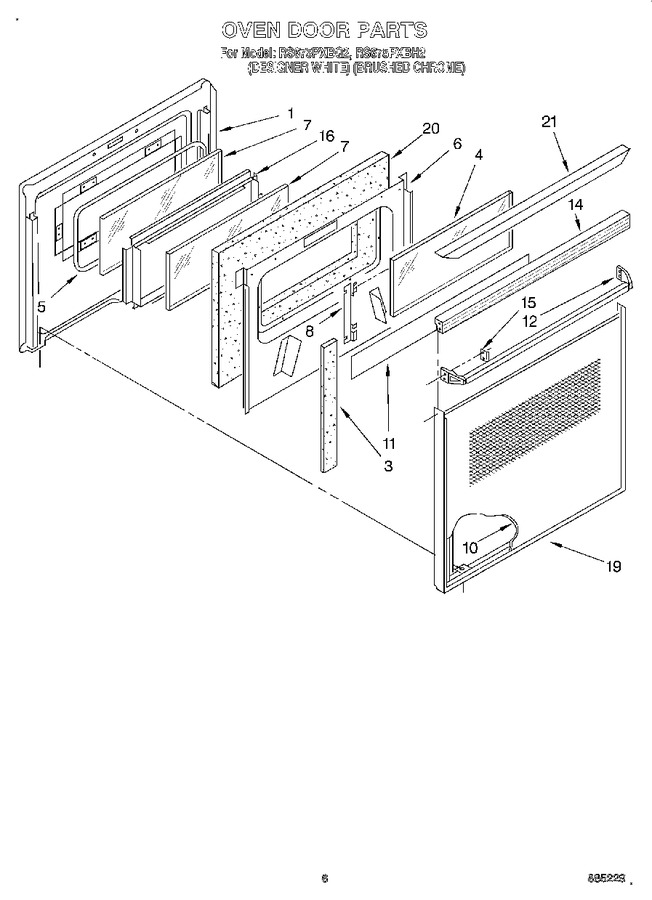

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172218 | Liner, Door |
|
- | |||||
| 1 | 307748 | Screw (9) |
|
- | |||||
| 3 | 3148441 | Seal, Flange (2) |
|
- | |||||
| 4 | 3185647 | Screw |
|
- | |||||
| 4 | 3169202 | Glass, Clear |
|
- | |||||
| 5 | 3148183 | Seal, Window |
|
$ 7.41 | |||||
| 6 | 3148159 | Retainer, Insulation |
|
- | |||||
| 6 | 4173601 | Screw (4) |
|
- | |||||
| 7 | WP3169203 | Glass, Inner & Outer (Replaces: 3169203) |
|
$ 135.71 | |||||
| 8 | 3188720 | Retainer, Glass (2) |
|
- | |||||
| 10 | 3188054 | Glass, Panel (black) |
|
- | |||||
| 10 | 3188053 | Glass, Panel (white Model) |
|
- | |||||
| 11 | 3188706 | Foil, Door |
|
- | |||||
| 12 | 3187941 | Handle, Door (platinum) |
|
$ 0.01 | |||||
| 12 | WP355515 | Handle, Door (screw (4)) (Replaces: 355515) |
|
$ 6.90 | |||||
| 12 | 3187940 | Handle, Door (black) |
|
$ 107.32 | |||||
| 14 | 3148223 | Top, Door (black) |
|
- | |||||
| 14 | 3149355 | Top, Door (grey) |
|
- | |||||
| 15 | 3148282 | Clip, Mtg (2) |
|
$ 8.69 | |||||
| 16 | 3148234 | Frame, Glass |
|
- | |||||
| 19 | 3148235 | Frame, Glass Panel |
|
- | |||||
| 19 | 3179117 | Screw |
|
- | |||||
| 20 | 3147951 | Insulation, Door |
|
- | |||||
| 21 | 261582 | Grease |
|
- | |||||
| 21 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 21 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 21 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 21 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 21 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 21 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 21 | 8212471 | Touch-up Self-clean (1 Oz.) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 21 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 21 | 3181363 | Cap, Top |
|
- | |||||
| 21 | WP308685 | Screw (2) (Replaces: 3182346) |
|
Immediately | $ 7.08 | ||||
| 21 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 21 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 21 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 21 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 21 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 21 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- |
