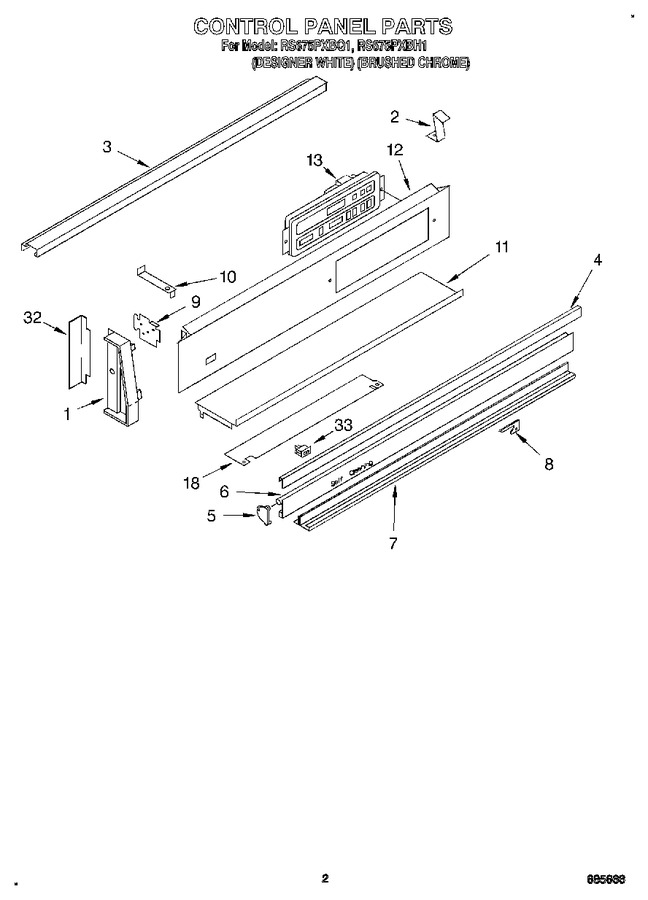

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148445 | End Cap (left Hand (black)) |
|
- | |||||
| 1 | 3148444 | End Cap (right Hand (black)) |
|
- | |||||
| 1 | 3150013 | End Cap (left Hand (white)) |
|
- | |||||
| 1 | 3150014 | End Cap (right Hand (white)) |
|
- | |||||
| 2 | 98520 | Screw |
|
- | |||||
| 2 | 3184395 | Bracket, Control |
|
- | |||||
| 3 | 3148616 | Rail, Top |
|
- | |||||
| 3 | 98520 | Screw |
|
- | |||||
| 4 | 3148620 | Trim, Center (black) |
|
- | |||||
| 4 | 3149350 | Trim, Center (white) |
|
- | |||||
| 5 | 3148471 | Trim, Vent Door (left Hand (rosemont Grey)) |
|
- | |||||
| 5 | 3148697 | Trim, Vent Door Left Hand (black) |
|
- | |||||
| 5 | 3148698 | Trim, Vent Door (right Hand (black)) |
|
- | |||||
| 5 | 3148472 | Trim, Vent Door (right Hand (rosemont Grey)) |
|
- | |||||
| 6 | 342043 | Door, Vent (screw (2)) |
|
- | |||||
| 6 | 3183505 | Door, Vent (black) |
|
- | |||||
| 6 | 3183506 | Door, Vent (brushed Aluminum) |
|
- | |||||
| 7 | 3148618 | Trim, Bottom |
|
- | |||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 8 | 98520 | Screw |
|
- | |||||
| 8 | 3149142 | Shield, Air |
|
- | |||||
| 9 | 3149028 | Cover, Side (left Side) |
|
- | |||||
| 9 | 3149027 | Cover, Side (right Side) |
|
- | |||||
| 10 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 10 | 312752 | Bracket, Support |
|
- | |||||
| 11 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 11 | 3188534 | Shield, Heat |
|
- | |||||
| 12 | 98520 | Panel, Control (screw) |
|
- | |||||
| 12 | 3182302 | Panel, Control (white) |
|
- | |||||
| 12 | 3182301 | Panel, Control (black) |
|
- | |||||
| 13 | 98520 | Control, Electronic (screw (2)) |
|
- | |||||
| 13 | 3169256 | Control, Electronic (black) |
|
- | |||||
| 13 | 3169257 | Control, Electronic (white) |
|
- | |||||
| 18 | 3183992 | Shield, Control |
|
- | |||||
| 32 | 3149901 | Trim, End Cap (white) |
|
- | |||||
| 32 | 3149900 | Trim, End Cap (black) |
|
- | |||||
| 33 | 3182717 | Switch, Rocker (black) |
|
- | |||||
| 33 | 3182718 | Switch, Rocker (white) |
|
- |
