01 - Cooktop


02 - Control Panel


03 - Oven, Lit/optional


04 - Wiring Harness


05 - Oven Door

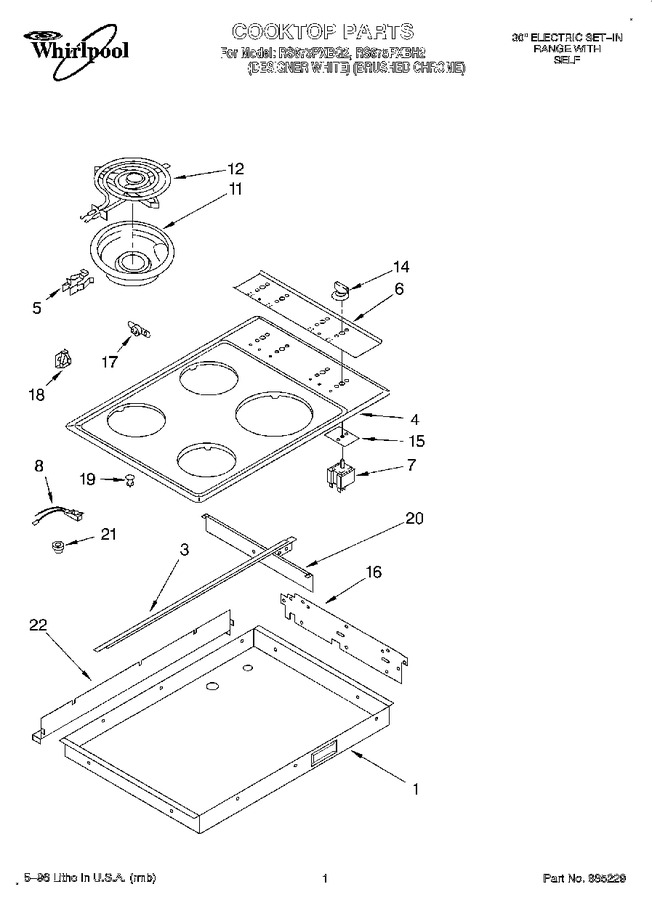

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4454576		Box, Burner		Appelez-nous	-
3	4454588		Bracket, Mounting		Appelez-nous	-
3	4159456		Screw (6)		Appelez-nous	-
4	3148754		Cooktop (white)		Appelez-nous	-
4	3183904		Cooktop (brushed Chrome)		Appelez-nous	-
5	330031		Clip, Mtg. (4)   (Replaces: 312606)			Immediately	$ 14.48
6	3183219		Panel, Control (white)		Appelez-nous	-
6	3183218		Panel, Control (brushed Chrome)		Appelez-nous	-
7	4454534		Switch, Infinite (use W/8`` Surface Unit)		Appelez-nous	-
7	4454532		Switch, Infinite (use W/6`` Surface Unit)		Appelez-nous	-
7	155023		Switch, Infinite (screw,)			Immediately	$ 7.91
7	WP488729		Switch, Infinite (screw,)   (Replaces: 3148107)			Immediately	$ 7.01
8	3187778		Light, Indicator		Appelez-nous	-
11	WPW10196406		Pan, Surface (6`` Pan)   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface (8`` Pan)   (Replaces: 3150247)			Immediately	$ 18.70
12	WP660532		Unit, Surface (2) (6``) (240v)   (Replaces: 660532)			Immediately	$ 36.90
12	WP660533		Unit, Surface (2) (8``) (240v)   (Replaces: 660533)			Immediately	$ 39.47
14	3183119		Knob, Control (white)		Appelez-nous	-
14	3183120		Knob, Control (black)		Appelez-nous	-
15	3183956		Seal, Switch Shaft (4)				$ 41.81
16	3188527		Plate, Cooktop Mounting		Appelez-nous	-
17	WP3188286		Thermostat   (Replaces: 3188286)				$ 66.13
17	313806		Screw, 6-32 X 1/4 (3)		Appelez-nous	-
18	814103		Clip, Retainer (4)   (Replaces: 3148790)				$ 9.02
19	313602		Light Lens (2)		Appelez-nous	-
20	3187446		Shield, Heat		Appelez-nous	-
20	4159456		Screw		Appelez-nous	-
21	258109		Bushing		Appelez-nous	-
22	3188528		Cover, Rear		Appelez-nous	-
22	4159456		Screw		Appelez-nous	-
