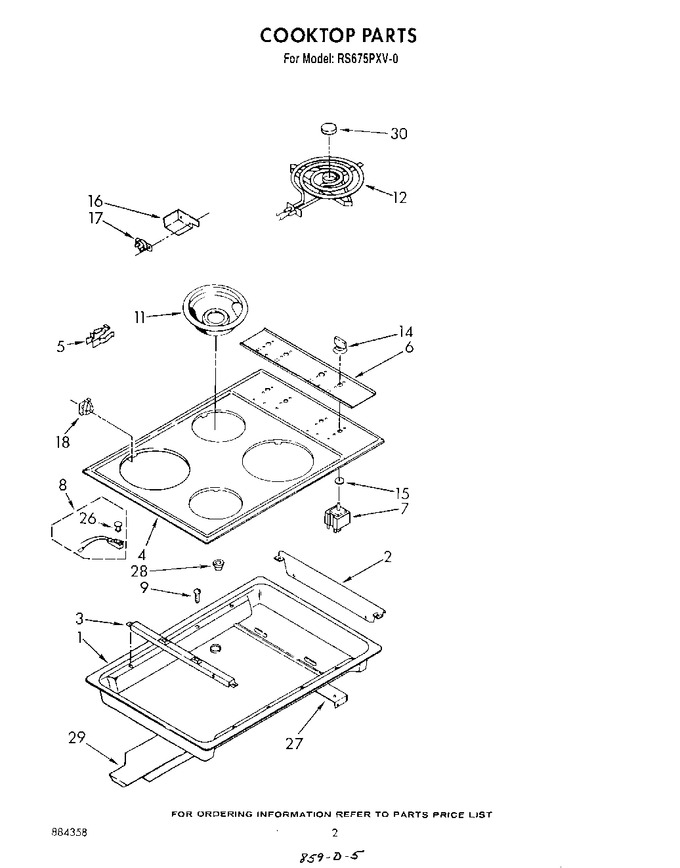

SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Oven


05 - Wiring Harness , Lit/optional


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311019		Burner Box		Appelez-nous	-
2	310716		Shield, Switch		Appelez-nous	-
2	WP488729		Screw (2) 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
3	310717		Support, Cooktop		Appelez-nous	-
3	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
4	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
4	3148039		Cooktop		Appelez-nous	-
5	330031		Clip, Receptacle   (Replaces: 3147829)			Immediately	$ 14.48
6	3148704		Panel, Control		Appelez-nous	-
7	WP488729		Switch, Infinite (screw, 8-32 X 5/16 (8))   (Replaces: 3148107)			Immediately	$ 7.01
7	W10900107		Switch, Infinite (6`` Unit (2))   (Replaces: 3148946)			Immediately	$ 51.87
7	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148945)			Immediately	$ 47.15
8	313461		Light, Indicator (includes No. 26)		Appelez-nous	-
9	312318		Screw, 10-32 X 1/2		Appelez-nous	-
11	WPW10196406		Pan, Surface (6`` Pan)   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface (8`` Pan)   (Replaces: 3150247)			Immediately	$ 18.70
12	WP660532		Unit, Surface (2) (6``) (240v)   (Replaces: 660532)			Immediately	$ 36.90
12	WP660533		Unit, Surface (2) (8``) (240v)   (Replaces: 660533)			Immediately	$ 39.47
14	3148161		Knob, Control		Appelez-nous	-
15	309839		Seal, Switch Shaft (4)		Appelez-nous	-
16	3147830		Bracket, Sensor		Appelez-nous	-
17	WP313808		Screw (7)   (Replaces: 313808)				$ 6.84
17	3147833		Thermostat				$ 0.01
18	814103		Clip, Retainer (4)   (Replaces: 3148790)				$ 9.02
26	313602		Lens, Light		Appelez-nous	-
27	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
27	310718		Support, Burner Box		Appelez-nous	-
28	258109		Bushing		Appelez-nous	-
29	WP488729		Screw (3)   (Replaces: 313638)			Immediately	$ 7.01
29	3147565		Cover, Top Rear		Appelez-nous	-
30	3147713		Medallion		Appelez-nous	-
	LIT3148601		Sheet, Tech		Appelez-nous	-
	LIT884358		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT3149928		Guide, Use & Care		Appelez-nous	-
	LIT3148556		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
