02 - Cooktop


03 - Control Panel


04 - Oven


05 - Wiring Harness, Optional

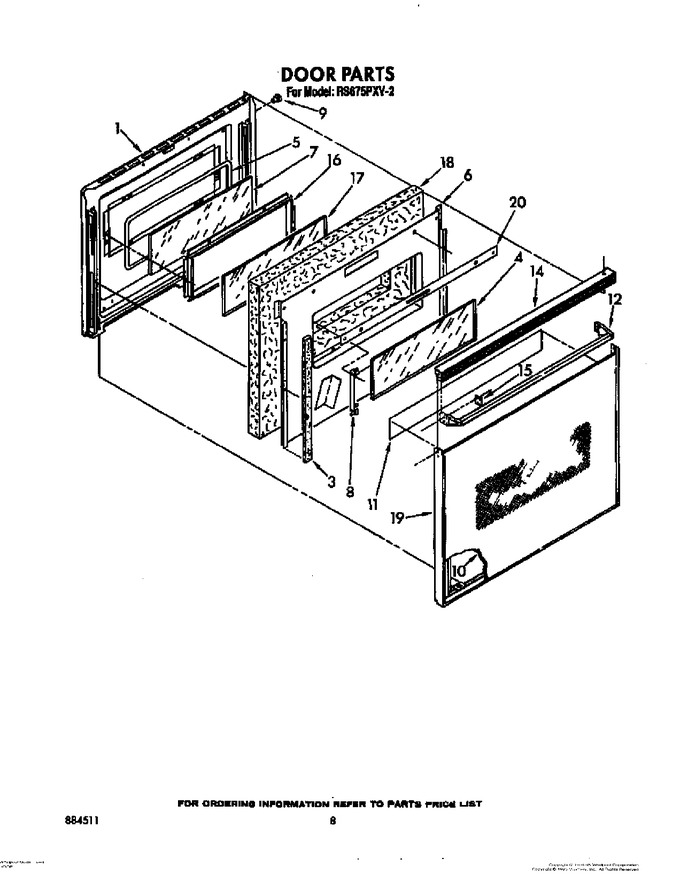

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149333		Screw (2)				$ 5.33
1	307748		Screw, 10 X 1/2 (9)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inside   (Replaces: 313004)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Panel, Black Glass		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	3148228		Handle, Door		Appelez-nous	-
14	3149333		Screw (3)				$ 5.33
14	3148223		Frame, Door Top		Appelez-nous	-
15	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
15	3148282		Clip, Mtg. Handle				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 135.71
18	3147951		Insulation		Appelez-nous	-
19	3148235		Frame, Door		Appelez-nous	-
20	254225		Screw (2)		Appelez-nous	-
20	3148680		Shield		Appelez-nous	-
	LIT3148601		Sheet, Tech		Appelez-nous	-
	LIT3147390		Instructions, Installation		Appelez-nous	-
	LIT3149928		Guide, Use & Care		Appelez-nous	-
	LIT313358		Cooking Guide		Appelez-nous	-
	LIT884511		Repair Parts List		Appelez-nous	-
