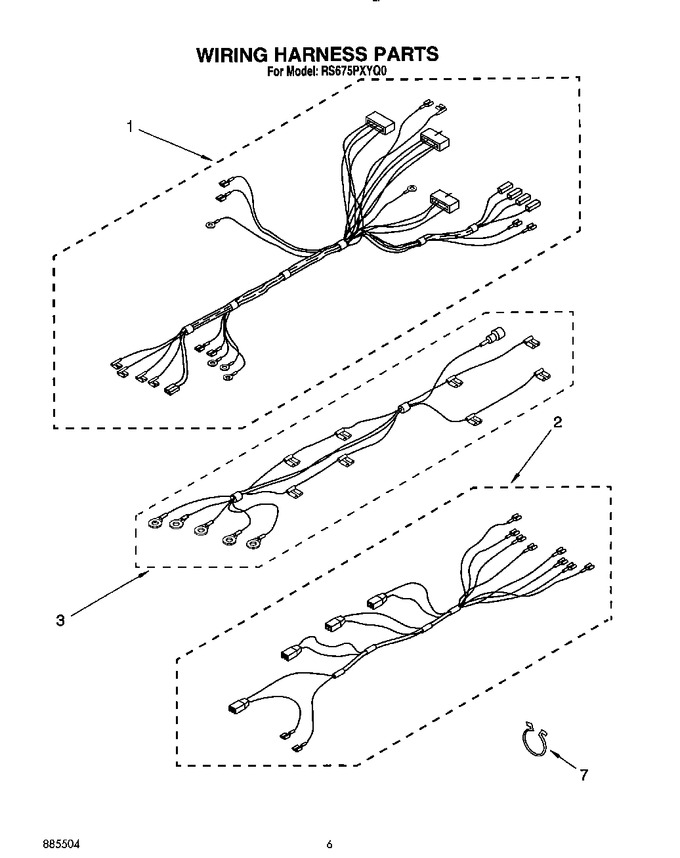

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183289 | Harness, Wire (main) |
|
- | |||||
| 2 | 3147828 | Harness, Wire (surface Elements) |
|
- | |||||
| 3 | 313464 | Harness, Wire (infinite Switch) |
|
- | |||||
| 7 | 307748 | Screw (2) |
|
- | |||||
| 7 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 7 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 7 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 7 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 7 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 7 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 7 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 7 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 7 | CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | ||||
| 7 | 3171507 | Mounting Hardware (rs675pxyb0) |
|
- | |||||
| 7 | 3183146 | Mounting Hardware (rs675pxyq0) |
|
- | |||||
| 7 | 8212471 | Touch-up Self-clean (1 Oz.) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 7 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 7 | 261582 | Grease |
|
- | |||||
| 7 | WA906B | Scraper, Window (Replaces: 3183488) |
|
Immediately | $ 4.86 | ||||
| 7 | 16515 | Clip, Harness (2) (Replaces: 313438) |
|
$ 17.60 | |||||
| 7 | 308504 | Screw (2) |
|
- | |||||
| 7 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 7 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 7 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 7 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 7 | 242823 | Wire (14 Ga. 150 C Green) |
|
- |
