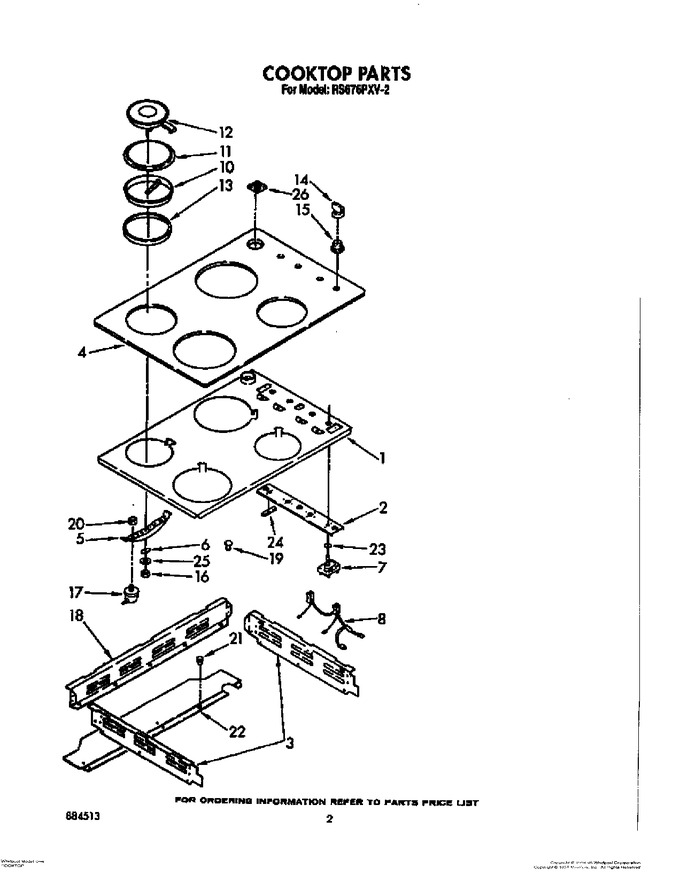

02 - Cooktop
03 - Control Panel
04 - Oven
05 - Wiring Harness, Optional
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3147038 | Plate, Backup |
|
- | |||||
| 2 | 3147735 | Bracket, Switch |
|
- | |||||
| 2 | 254225 | Screw (3) |
|
- | |||||
| 3 | WP488729 | Support, Rail (screw (8)) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 3 | 3147025 | Rail, Support (r.h.) |
|
- | |||||
| 3 | 3147024 | Rail, Support (l.h.) |
|
- | |||||
| 4 | 3148924 | Cooktop, Glass |
|
- | |||||
| 4 | WP488729 | Screw, 8-18 X 1/2 (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 5 | 3147704 | Bracket, Element (8`` Burner) |
|
- | |||||
| 5 | 3147703 | Bracket, Element (6`` Burner) |
|
- | |||||
| 6 | 3147191 | Spring, Leaf |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (6`` Unit (2)) |
|
$ 67.77 | |||||
| 7 | 3148950 | Switch, Infinite (8`` Unit (2)) |
|
$ 28.56 | |||||
| 7 | WP486579 | Switch, Infinite (screw (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 8 | 3149039 | Light, Indicator |
|
- | |||||
| 10 | 3147188 | Gasket, Ring (8`` Burner) |
|
- | |||||
| 10 | 3147187 | Gasket, Ring (6`` Burner) |
|
- | |||||
| 11 | 3148486 | Pan, Surface (6`` Ring) |
|
- | |||||
| 11 | 3148489 | Pan, Surface (8`` Ring) |
|
- | |||||
| 12 | WP3147132 | Unit, Surface (2) 8`` Burner (Replaces: 3147132) |
|
$ 272.69 | |||||
| 12 | WP3147131 | Unit, Surface (2) 6`` Burner (Replaces: 3147131) |
|
$ 244.76 | |||||
| 13 | 3148561 | Seal, Silicone (8`` Burner) |
|
- | |||||
| 13 | 3148562 | Seal, Silicone (6`` Burner) |
|
- | |||||
| 14 | 3150020 | Knob, Control |
|
- | |||||
| 15 | 3149899 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3147189 | Nut, Metric (4) |
|
- | |||||
| 17 | 3148397 | Thermostat |
|
- | |||||
| 18 | WP681414 | Screw (6) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 18 | 3147061 | Rail, Support |
|
- | |||||
| 18 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 19 | 319221 | Light Lens (2) |
|
- | |||||
| 20 | 3147190 | Nut, Thermostat (4) |
|
- | |||||
| 21 | 258109 | Bushing |
|
- | |||||
| 22 | 3147566 | Cover, Top Rear |
|
- | |||||
| 22 | WP488729 | Screw (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 23 | 309839 | Seal, Switch (4) |
|
- | |||||
| 24 | 3147485 | Tape, Foam |
|
- | |||||
| 25 | 3148615 | Washer, Flat (4) |
|
- | |||||
| 26 | 3147037 | Cover, Vent |
|
- |
