02 - Oven

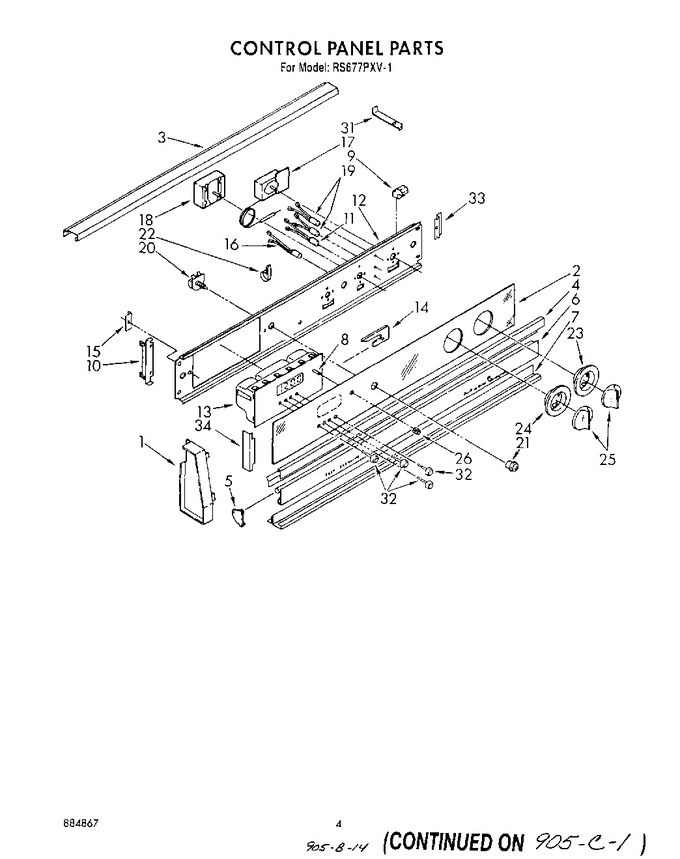

03 - Control Panel
04 - Door
05 - Wiring Harness , Lit/optional
06 - Cook Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148444 | End Cap (r.h.) |
|
- | |||||
| 1 | 309080 | Screw (4) |
|
- | |||||
| 1 | 3148445 | End Cap (l.h.) |
|
- | |||||
| 2 | 3148636 | Control Panel, Glass |
|
- | |||||
| 3 | 98520 | Screw (2) |
|
- | |||||
| 3 | 3148616 | Rail, Top |
|
- | |||||
| 4 | 3148620 | Trim, Center |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door L.h. |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door R.h. |
|
- | |||||
| 6 | 342043 | Screw (2) |
|
- | |||||
| 6 | 3148617 | Door, Vent |
|
- | |||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 7 | 3148618 | Trim, Bottom |
|
- | |||||
| 7 | 98520 | Screw (4) |
|
- | |||||
| 8 | 3149320 | Shaft, Bit Generator |
|
- | |||||
| 9 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 10 | 3148634 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 11 | 313461 | Light, Indicator |
|
- | |||||
| 12 | 330500 | Bracket, Control |
|
- | |||||
| 13 | 3149806 | Timer, Digital (includes Illus. 26 & 28) |
|
- | |||||
| 14 | 98520 | Screw |
|
- | |||||
| 14 | 3149142 | Shield, Air |
|
- | |||||
| 15 | 313864 | Bracket, Timer |
|
- | |||||
| 16 | 3148720 | Light, Indicator |
|
- | |||||
| 17 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 17 | 3148934 | Thermostat, Oven |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 18 | 310006 | Selector Switch |
|
- | |||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | 98520 | Screw (4) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 22 | 98520 | Screw, 8a X 5/16 |
|
- | |||||
| 23 | 311066 | Escutcheon, Thermostat |
|
$ 25.00 | |||||
| 24 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 24 | WP311068 | Escutcheon, Selector Switch (Replaces: 311068) |
|
$ 49.73 | |||||
| 25 | WP3150371 | Knob, Control (2) (Replaces: 3150371) |
|
$ 19.40 | |||||
| 26 | 313523 | Knob, Bit Generator |
|
$ 13.66 | |||||
| 26 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 31 | 312752 | Support, Top Rail |
|
- | |||||
| 32 | 313958 | Knob (4) |
|
- | |||||
| 33 | 313865 | Bracket, Control |
|
- | |||||
| 34 | 3149900 | Trim, End Cap |
|
- |
