Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3172194 Frame, Front Appelez-nous -
2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

3 309111 Snubber, Door (2) Appelez-nous -
4 308306 Pushnut (2) Appelez-nous -
5 310770 Insulation Tray Appelez-nous -
6 311009 Side Wrapper (left Side) Appelez-nous -
6 311006 Side Wrapper (right Side) Appelez-nous -
6 WP488729 Screw, 8 X 1/2 (14)   (Replaces: 3148107) In-Stock Immediately $ 7.01

7 311774 Support, Side Wrapper (4) Appelez-nous -
7 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

8 3148284 Gasket, Door Appelez-nous -
9 3183796 Baffle, Top Insulation Appelez-nous -
9 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

10 WP488729 Screw, 8 X 1/2 (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

10 310685 Side Trim L.h. Appelez-nous -
10 310689 Side Trim (r.h.) Appelez-nous -
11 311056 Screw (3) Appelez-nous -
11 3182032 Oven (30`` Pyro) Appelez-nous -
12 WP489069 Screw (4)   (Replaces: 693994) In-Stock Immediately $ 7.07

12 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

12 310713 Bracket, Oven Mounting (2) Appelez-nous -
12 WP681414 Screw, 10-32 X 5/8 (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

14 WP3184533 Gasket, Bulb   (Replaces: 3184533) In-Stock Immediately $ 7.73

15 328802 Hinge Ear, L.h. Appelez-nous -
15 328801 Hinge Ear, R.h. Appelez-nous -
16 310659 Plate, Side Panel (2) Appelez-nous -
16 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

17 329713 Channel Arm (2) Appelez-nous -
18 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

19 307594 Ring, Retainer (2) Appelez-nous -
20 311256 Baffle, Insulation Appelez-nous -
20 3148442 Screw (2) Appelez-nous -
21 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 38.15

23 WP488729 Screw, 8-18 X 1/2   (Replaces: 313638) In-Stock Immediately $ 7.01

23 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

23 3184323 Tube, Vent Extension Appelez-nous -
24 98520 Screw, 8a X 5/16 Appelez-nous -
24 WP488729 Screw, 8 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

24 310839 Eliminator, Smoke Appelez-nous -
25 310662 Plate, Cover Appelez-nous -
25 WP488729 Screw, 8 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

26 WP308180 (alt.)   (Replaces: 313827) Special Order $ 96.92

26 WP308180 Unit, Bake   (Replaces: 661170) Special Order $ 96.92

26 WP308180 Unit, Bake (240v) (alt.)   (Replaces: 308180) Special Order $ 96.92

26 3150532 Screw, 10-32 X 5/8 (2) Appelez-nous -
27 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

27 WP660579 (alt.)   (Replaces: 311714) Special Order $ 140.80

27 WP660579 (alt.)   (Replaces: 311713) Special Order $ 140.80

27 3150532 Screw, 10-32 X 5/8 (4) Appelez-nous -
28 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
28 W11594027 Oven Light Assy.   (Replaces: 3150505) In-Stock Immediately $ 78.31

29 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

33 311056 Screw (2) Appelez-nous -
33 3183801 Latch Assembly Appelez-nous -
33 WP488729 Screw, 8 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

34 98106 Screw (2) Appelez-nous -
34 3178671 Safety Switch Appelez-nous -
35 309245 Insulator, Switch Appelez-nous -
36 313035 Terminal, Shield Appelez-nous -
36 309258 Screw, 6 X 3/8 (2) Appelez-nous -
37 310825 Latch, Handle Appelez-nous -
37 308422 Screw, 10-24 X 1/2 (2) Appelez-nous -
38 3184039 Knob, Latch Handle Appelez-nous -
38 3183294 Screw, 8-32 X 1/4 Appelez-nous -
39 310345 Switch, Door Special Order $ 94.86

40 3182814 Plug, Button Appelez-nous -
41 3148440 Sensor, Heat Appelez-nous -
47 3149359 Bottom Grill (white) Appelez-nous -
47 309029 Bottom Grill (screw, 8-15 X 1/2 (3)) Appelez-nous -
47 310668 Bottom Grill (black) Special Order $ 556.11

52 WP488729 Screw, 8 X 1/2 (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

52 311012 Cover, Rear Appelez-nous -
53 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

53 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
53 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

54 310458 Cover, Bottom & Top (2) Appelez-nous -
56 3182052 Panel, Back Appelez-nous -
56 WP488729 Screw, 8 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

59 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

60 4396923 Grill, Broiler Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

61 308173 Rack, Oven Appelez-nous -
62 308172 Rack, Oven (offset) Appelez-nous -
63 3149328 Insulation, Top Appelez-nous -
63 310435 Insulation, Oven Appelez-nous -
63 310433 Insulation, Wrap Appelez-nous -
63 3183005 Coverplate (2) Appelez-nous -
63 WP488729 Screw (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

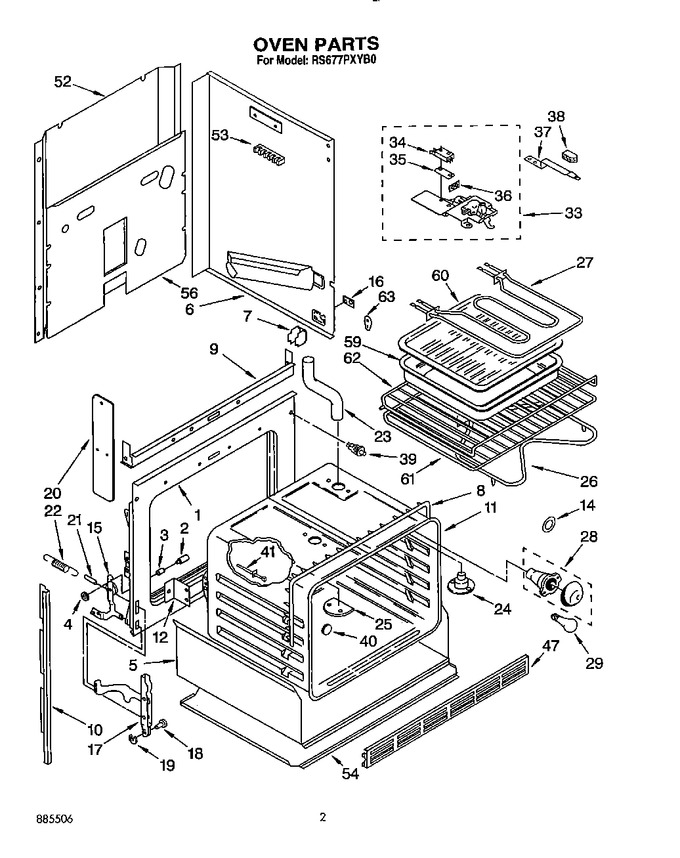

    View Diagram in Separate Window     Print Icon   Print Part List
