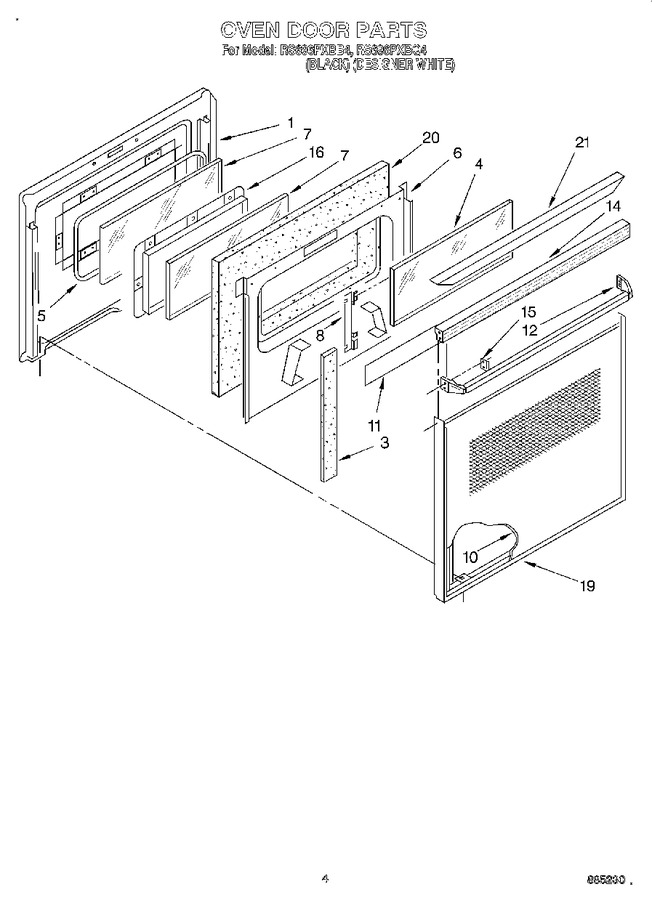

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
4	3185647		Screw (4)		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	4173601		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3188720		Retainer, Glass (2)		Appelez-nous	-
10	3188054		Glass, Panel (black)		Appelez-nous	-
10	3188053		Glass, Panel (white Model)		Appelez-nous	-
11	3188706		Foil, Door		Appelez-nous	-
12	3187941		Handle, Door (white)				$ 0.01
12	3187940		Handle, Door (black)				$ 107.32
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
14	3148223		Top, Door (black)		Appelez-nous	-
14	3149355		Top, Door (grey)		Appelez-nous	-
15	3149333		Screw				$ 5.33
15	WP355515		Screw   (Replaces: 355515)				$ 6.90
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Glass		Appelez-nous	-
16	3185647		Screw (6)		Appelez-nous	-
19	3148235		Frame, Glass Panel		Appelez-nous	-
20	3147951		Insulation		Appelez-nous	-
21	3181363		Cap, Top (white Model Only)		Appelez-nous	-
21	WP355515		Screw (2)   (Replaces: 355515)				$ 6.90

    View Diagram in Separate Window       Print Part List
