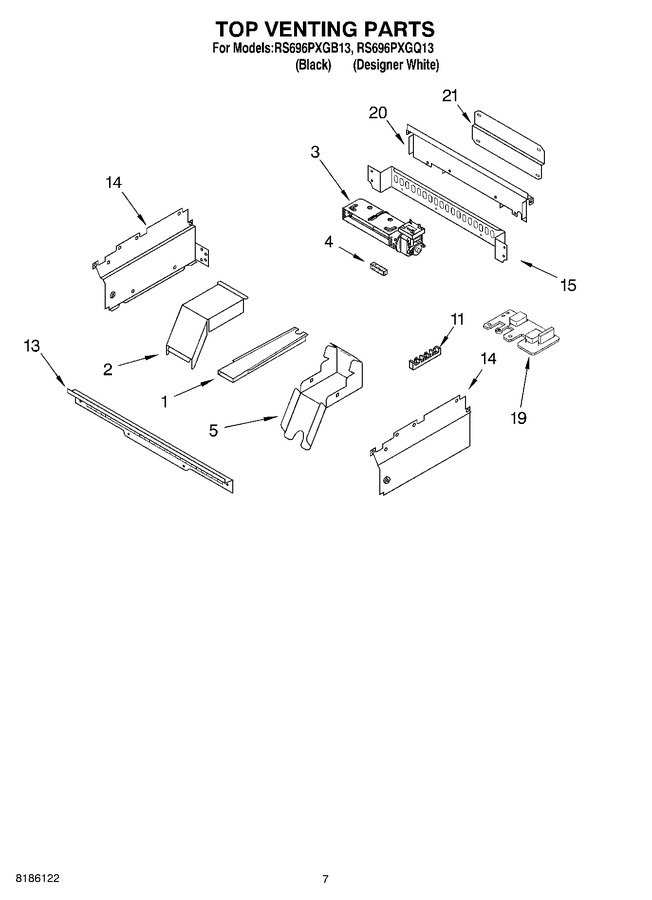

05 - Top Venting Parts


06 - Internal Oven Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 90.01
1	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
2	4455178		Elbow, Vent- Top				$ 13.30
3	WP4455352		Bracket   (Replaces: 4455352)				$ 32.15
3	4455334		Blower				$ 224.67
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
5	4455177		Elbow, Vent- Bottom				$ 9.77
11	W11684512		Screw   (Replaces: 3400080)				$ 12.69
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
13	4448549		Vent, Control Panel		Appelez-nous	-
13	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
14	4451535		Side, Control Compt. (right)		Appelez-nous	-
14	WP4449809		Side, Control Compt. (screw)   (Replaces: 4449809)			Immediately	$ 6.47
14	4451536		Side, Control Compt. (left)		Appelez-nous	-
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4452244		Back, Control		Appelez-nous	-
19	WP4451985		Suppressor   (Replaces: 4451985)				$ 148.69
20	3191842		Cover, Rear		Appelez-nous	-
21	4451407		Plate, Support		Appelez-nous	-
21	4452260		Spacer, Foam		Appelez-nous	-
