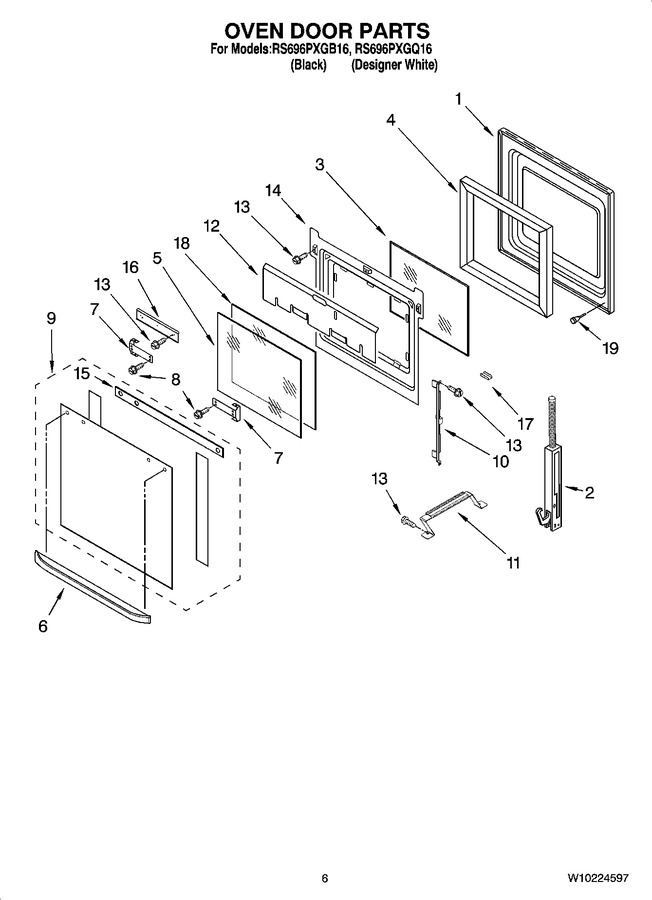

04 - Oven Door Parts
05 - Top Venting Parts
06 - Internal Oven Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Door Liner (Replaces: 9759413) |
|
$ 317.54 | |||||
| 2 | WP9760572 | Hinge, Door (left) (Replaces: 9760572) |
|
$ 95.97 | |||||
| 2 | WP9760571 | Hinge, Door (right) (Replaces: 9760571) |
|
Immediately | $ 98.15 | ||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 182.86 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 5 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 6 | 4448854 | Door Handle (black) |
|
$ 74.07 | |||||
| 6 | 4448855 | Door Handle (white) |
|
- | |||||
| 7 | 4450813 | Bracket, Handle |
|
$ 24.20 | |||||
| 8 | W10276642 | Screw (Replaces: 4451040) |
|
$ 5.49 | |||||
| 9 | 8300899 | Assembly, Door Glass (white) |
|
- | |||||
| 9 | 8300903 | Assembly, Door Glass (black) |
|
- | |||||
| 10 | WP9759229 | Bracket (2nd Glass) (Replaces: 9759229) |
|
$ 160.71 | |||||
| 11 | 9759230 | Bracket (3rdglass) |
|
$ 36.30 | |||||
| 12 | 4457104 | Shield, Heat |
|
$ 33.62 | |||||
| 13 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 14 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 15 | 8300820 | Seal, Door Top |
|
- | |||||
| 16 | 4457114 | Shield, Heat (btm) |
|
$ 186.68 | |||||
| 17 | 4450864 | Retainer, Clip (white) |
|
- | |||||
| 17 | 4450863 | Retainer, Clip (black) |
|
- | |||||
| 18 | 9759228 | Glass, Inner |
|
$ 87.91 | |||||
| 19 | 4448520 | Bumper, Door |
|
$ 19.07 |
