01 - Cooktop Parts

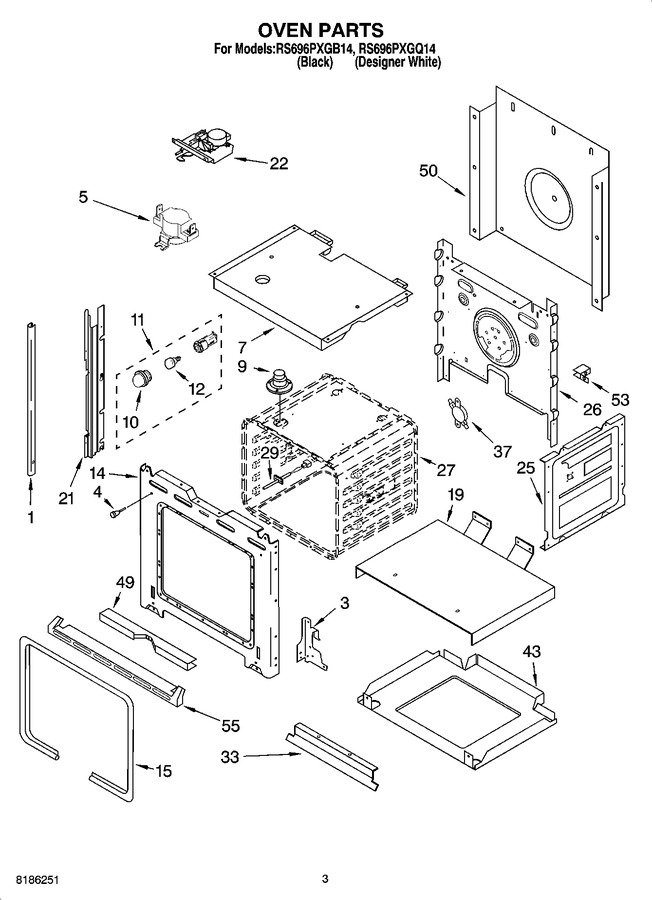

02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Top Venting Parts
06 - Internal Oven Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8281236 | (trim, Side (left Hand)) (screw) (Replaces: 8281236) |
|
$ 6.80 | |||||
| 1 | 4450848 | Trim, Side (left Hand) (white Model Screw) |
|
- | |||||
| 1 | 4450844 | Trim, Side (right Hand) (black Model) |
|
- | |||||
| 1 | WP8281236 | Trim, Side (right Hand) (screw) (Replaces: 4449747) |
|
$ 6.80 | |||||
| 1 | 4450845 | Trim, Side (right Hand) (white Model) |
|
- | |||||
| 1 | 4450847 | Trim, Side (left Hand) (black Model) |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 19.07 | |||||
| 5 | 9760503 | Bracket |
|
- | |||||
| 5 | 9760535 | Thermosatat (tod) Spst 98c-74c |
|
- | |||||
| 7 | 4455865 | Top, Chassis |
|
- | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 9 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 48.26 | ||||
| 14 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.16 | |||||
| 14 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 14 | 9759060 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 62.78 | ||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 21 | 814371 | Rail, Side (right Side) (Replaces: 4450579) |
|
$ 109.53 | |||||
| 21 | WP4448444 | Rail, Side (grommet) (Replaces: 4448444) |
|
$ 6.73 | |||||
| 21 | WP4449154 | Rail, Side (screw) (Replaces: 4449154) |
|
$ 6.80 | |||||
| 21 | 814372 | Rail, Side (left Side) (Replaces: 4450580) |
|
$ 108.63 | |||||
| 22 | WPW10195934 | Latch, Motorized (Replaces: 9759481) |
|
Immediately | $ 259.79 | ||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 129.16 | |||||
| 25 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 26 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 27 | N/A | Liner, Oven (not Serviceable) |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 86.25 | ||||
| 29 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 33 | 4457117 | Deflector, Vent |
|
- | |||||
| 33 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 9759243) |
|
Immediately | $ 49.90 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 7.97 | |||||
| 50 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 128.63 | |||||
| 53 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 53 | 4449845 | Support, Bracket |
|
- | |||||
| 55 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 55 | 4448477 | Trim, Bottom (black Model) |
|
$ 71.44 | |||||
| 55 | 4448478 | Trim, Bottom (white Model) |
|
- | |||||
| 55 | N/A | Following Parts Not Illustrated Insulation |
|
- | |||||
| 55 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 107.01 |
