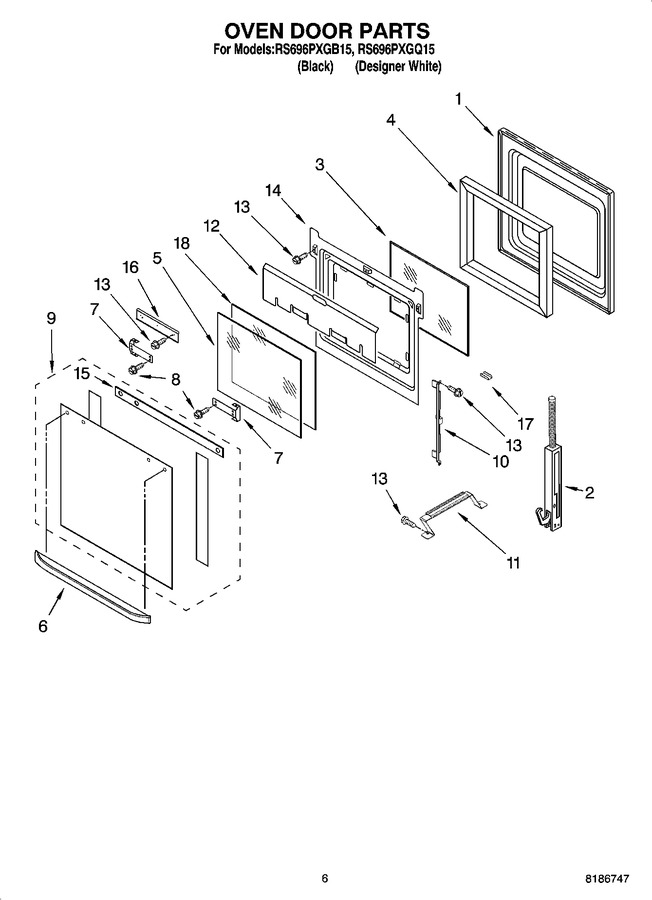

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Liner, Door   (Replaces: 9759413)				$ 317.54
2	WP9760572		Hinge, Door (l.side)   (Replaces: 9760572)				$ 95.97
2	WP9760571		Hinge, Door (r.side)   (Replaces: 9760571)			Immediately	$ 98.15
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
6	4448854		Door Handle (black Model)				$ 74.07
6	4448855		Door Handle (white Model)		Appelez-nous	-
7	4450813		Bracket, Handle				$ 24.20
8	W10276642		Screw   (Replaces: 4451040)				$ 5.49
9	8300899		Assy, Door Glass (white Model)		Appelez-nous	-
9	8300903		Assy, Door Glass (black Model)		Appelez-nous	-
10	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
11	9759230		Bracket (3rdglass)				$ 36.30
12	4457104		Shield, Heat   (Replaces: 4457103)				$ 33.62
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
14	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
15	8300820		Seal, Door Top		Appelez-nous	-
16	4457114		Shield, Heat-bottom				$ 186.68
17	4450863		Retainer, Clip (black Model)		Appelez-nous	-
17	4450864		Retainer, Clip (white Model)		Appelez-nous	-
18	9759228		Glass, Inner				$ 87.91
