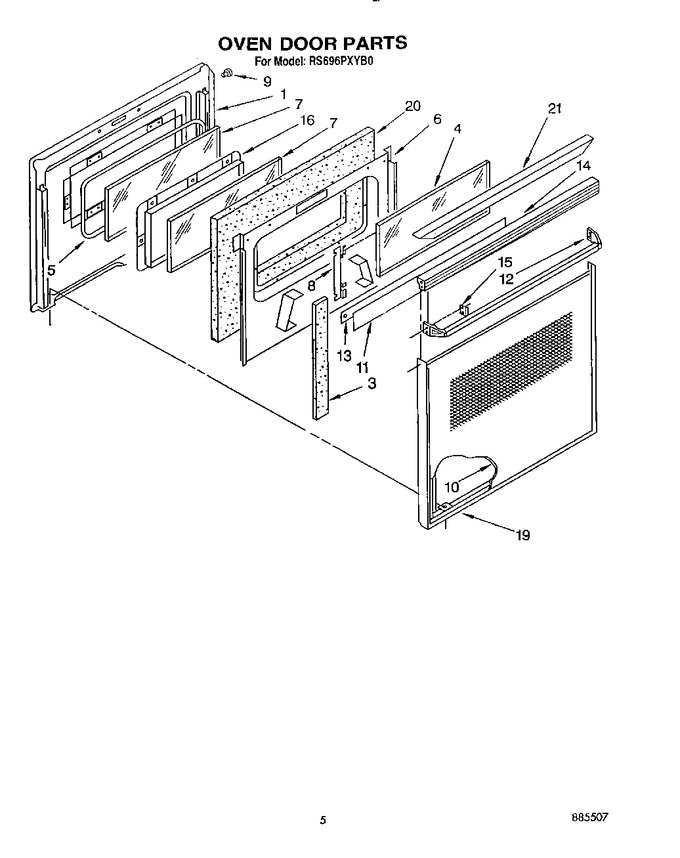

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148443		Screw (4)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3148443		Screw (4)		Appelez-nous	-
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
10	3149049		Glass, Panel (white)		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	3148228		Handle, Door (black)		Appelez-nous	-
12	3149354		Handle, Door (white)		Appelez-nous	-
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
13	254225		Screw (2)		Appelez-nous	-
13	3148680		Shield, Door		Appelez-nous	-
14	3182345		Top, Door (screw (5))		Appelez-nous	-
14	3149355		Top, Door (grey)		Appelez-nous	-
14	3148223		Top, Door (black)		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
19	3148235		Frame, Glass Panel		Appelez-nous	-
20	3147951		Insulation		Appelez-nous	-
21	3181363		Cap, Top		Appelez-nous	-
21	WP308685		Screw (2)   (Replaces: 3182346)			Immediately	$ 7.08
