SELECT A DIAGRAM

01 - Oven


02 - Control Panel


03 - Oven Door


04 - Wiring Harness, Lit/optional


05 - Cooktop

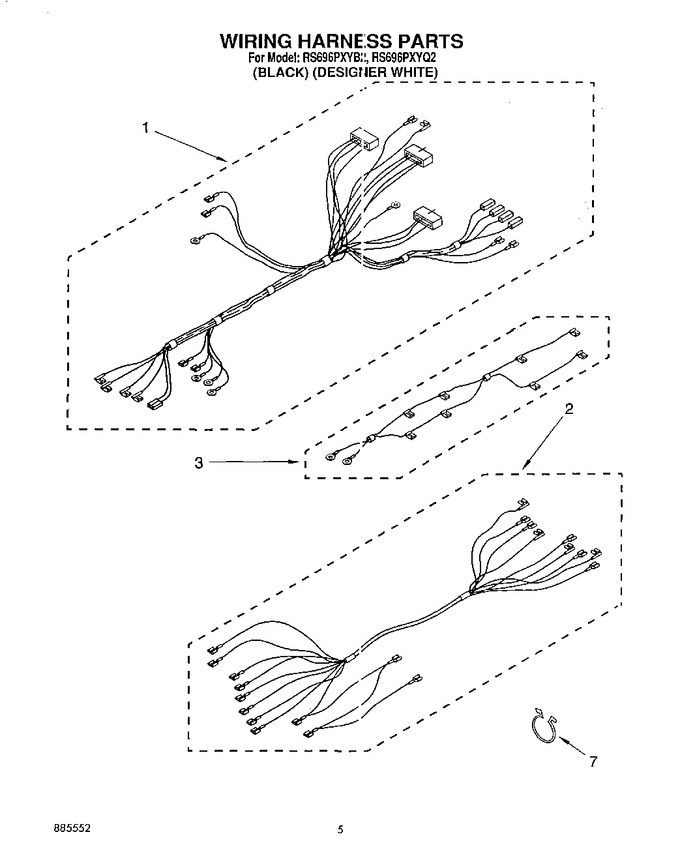

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183289		Harness, Wire (main)		Appelez-nous	-
2	3185855		Harness, Wire (surface Elements)		Appelez-nous	-
3	3149966		Harness, Wire (infinite Switch)		Appelez-nous	-
7	16515		Clip, Harness (2)   (Replaces: 313438)				$ 17.60
7	307748		Screw		Appelez-nous	-
7	308504		Screw		Appelez-nous	-
	3183146		Rs696pxyq2		Appelez-nous	-
	WA906B		Scraper, Window   (Replaces: 3183488)			Immediately	$ 4.86
	LIT3183770		Use & Care Guide		Appelez-nous	-
	LIT885552		Repair Parts List		Appelez-nous	-
	LIT3181454		Brochure		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	8212471		Touch-up   (Replaces: 242756)			Immediately	$ 74.76
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	261582		Grease		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	CERAMABRYTE		Cleaner, Glass   (Replaces: 3184477)			Immediately	$ 9.95
	3171507		Rs696pxyb2		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	LIT3182743		Tech Sheet		Appelez-nous	-
	LIT3147397		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
