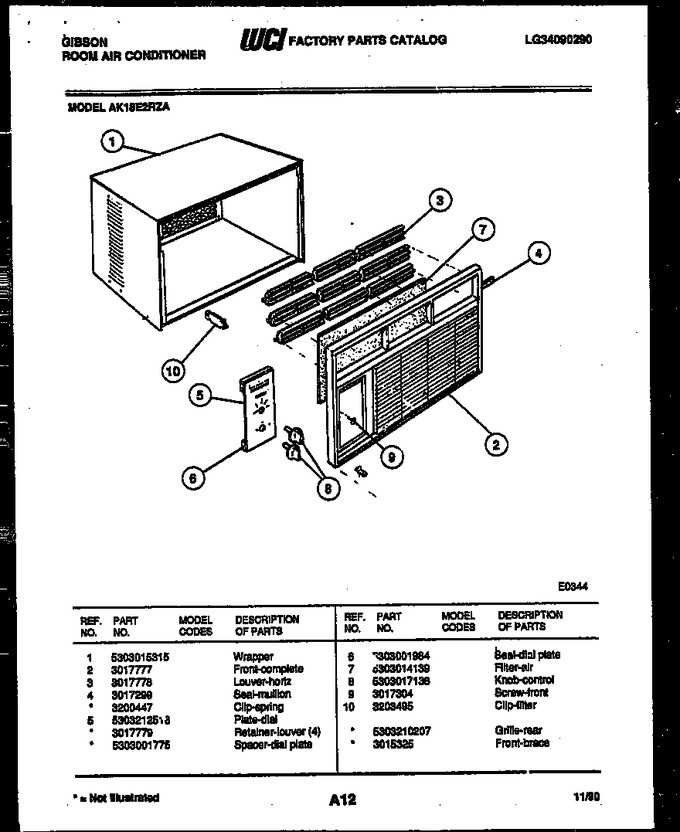

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 3017777 | Front-complete |
|
- | |||||
| 3 | 3017778 | Louver-horiz |
|
- | |||||
| 4 | 3017299 | Seal Mullion |
|
- | |||||
| 5 | 5303212516 | Plate-dial |
|
- | |||||
| 6 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 7 | 5303014139 | Filter-air |
|
- | |||||
| 8 | 5303017138 | Knob-control |
|
- | |||||
| 9 | 3017304 | Screw-front |
|
- | |||||
| 10 | 3203495 | Clip-filter |
|
- | |||||
| *23841 | 5303210207 | Grille-rear |
|
- | |||||
| *23842 | 3015325 | Front Brace |
|
- | |||||
| 4A | 3200447 | Clip-spring (non-illustrated) |
|
- | |||||
| 5A | 3017779 | Retainer-louver (4) (non-illustrated) |
|
- | |||||
| 5B | 5303001775 | Spacer-dial Plate (non-illustrated) |
|
- |
