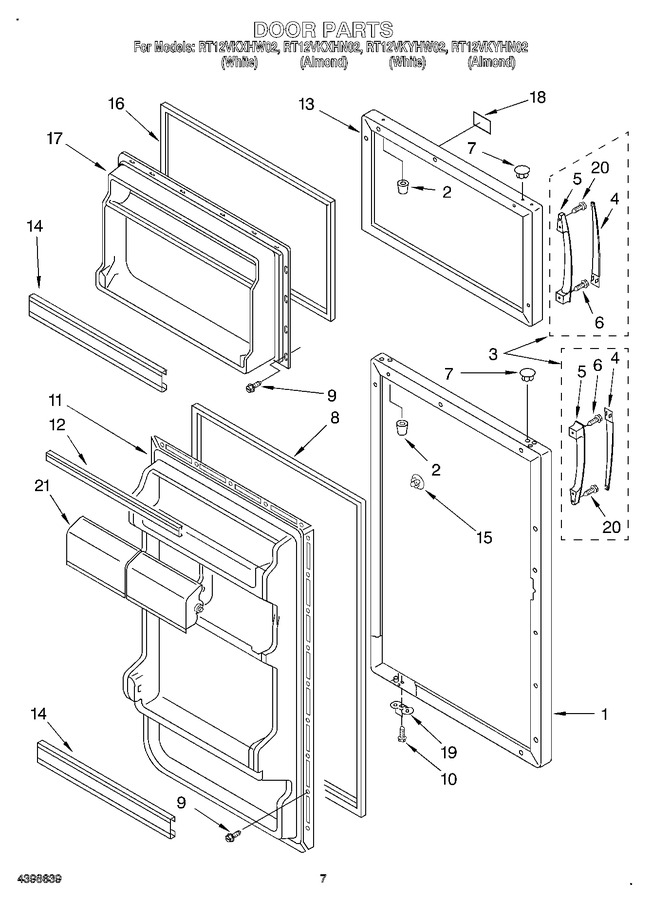

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390549 | Refrigerator Door Panel (white) |
|
- | |||||
| 1 | 4390550 | Refrigerator Door Panel (almond) |
|
- | |||||
| 2 | 4356811 | Cap, Hinge Sleeve (4) |
|
- | |||||
| 3 | 4390592 | Handle Kit (almond) |
|
- | |||||
| 3 | 4357275 | Handle Kit (white) |
|
- | |||||
| 4 | 4390553 | Insert, Handle (almond) |
|
- | |||||
| 4 | 4357036 | Insert, Handle (white) |
|
- | |||||
| 5 | 4390571 | Handle (almond) |
|
- | |||||
| 5 | 4357035 | Handle (white) |
|
- | |||||
| 6 | W10709795 | Screw (Replaces: 4390511) |
|
$ 11.82 | |||||
| 7 | 4390547 | Hole Plug (almond) |
|
- | |||||
| 7 | 4390499 | Hole Plug (white) |
|
- | |||||
| 8 | WP4390534 | Door Gasket, Magnetic (almond Model) (Replaces: 4390535) |
|
$ 271.19 | |||||
| 8 | WP4390534 | Door Gasket, Magnetic (white Model) (Replaces: 4390534) |
|
$ 271.19 | |||||
| 9 | 4390598 | Screw |
|
$ 18.89 | |||||
| 10 | 4390559 | Screw |
|
- | |||||
| 11 | 4390645 | Interior Door Panel (refrigerator) |
|
- | |||||
| 12 | 4390467 | Trim, Door Shelf |
|
- | |||||
| 13 | 4390554 | Freezer Door Panel (white) |
|
- | |||||
| 13 | 4390555 | Freezer Door Panel (almond) |
|
- | |||||
| 14 | 4390464 | Trim, Door Shelf |
|
- | |||||
| 15 | WP2189000 | Hole Plug (white) (Replaces: 4390596) |
|
Immediately | $ 6.66 | ||||
| 15 | WP2189000 | Hole Plug (almond) (Replaces: 4390595) |
|
Immediately | $ 6.66 | ||||
| 16 | 4390531 | Door Gasket, Magnetic (almond Model) |
|
- | |||||
| 16 | WP4390530 | Door Gasket, Magnetic (white Model) (Replaces: 4390530) |
|
$ 220.47 | |||||
| 17 | 4390599 | Interior Door Panel (freezer) |
|
- | |||||
| 18 | 4390622 | Nameplate |
|
- | |||||
| 19 | 4390524 | Bracket, Door Stop |
|
- | |||||
| 20 | WP3-24004-109 | Screw (Replaces: 4357223) |
|
$ 7.25 | |||||
| 21 | W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 135.88 | ||||
| 21 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 21 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 21 | 4390578 | Compartment Door |
|
- | |||||
| 21 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 80.69 | |||||
| 21 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 21 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 21 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 21 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 46.30 |
