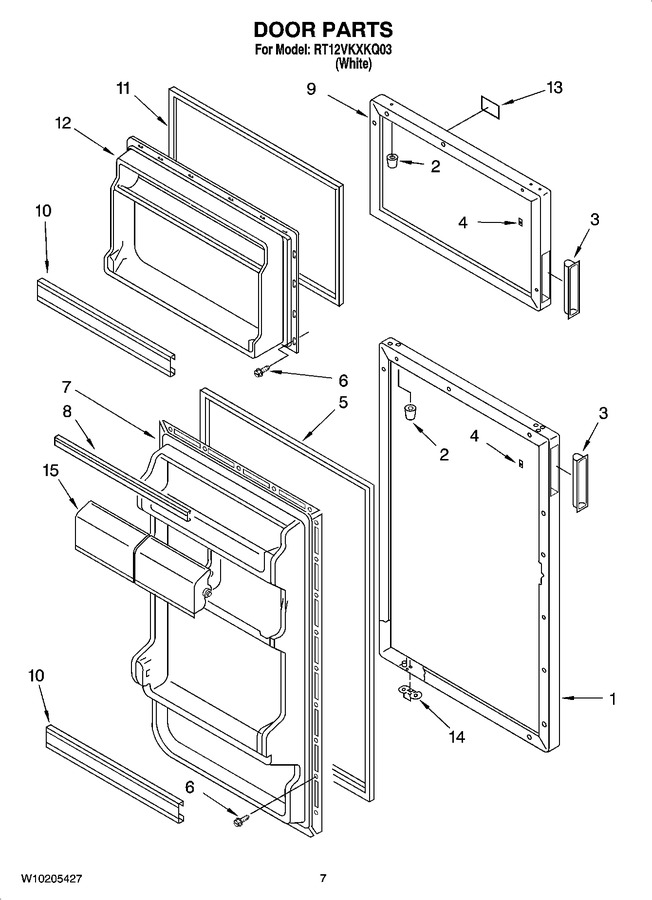

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390736		Refrigerator Door Panel (white)		Appelez-nous	-
2	4390731		Cap, Hinge Sleeve (white)				$ 19.69
3	4390641		Handle Kit (white)		Appelez-nous	-
4	4356306		Anchor, Screw				$ 7.36
5	4390727		Door Gasket, Magnetic (white)				$ 151.53
6	4390598		Screw				$ 18.89
7	4390726		Interior Door Panel (refrigerator)				$ 266.78
8	8210216		Trim, Door Shelf		Appelez-nous	-
9	4390737		Freezer Door Panel (white)		Appelez-nous	-
10	8210215		Trim, Door Shelf		Appelez-nous	-
11	4390724		Door Gasket, Magnetic (white Model)				$ 30.89
12	4390725		Interior Door Panel (freezer)		Appelez-nous	-
13	4390739		Nameplate (white)		Appelez-nous	-
14	4390738		Bracket, Door Stop		Appelez-nous	-
15	4390578		Compartment Door		Appelez-nous	-
