SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner

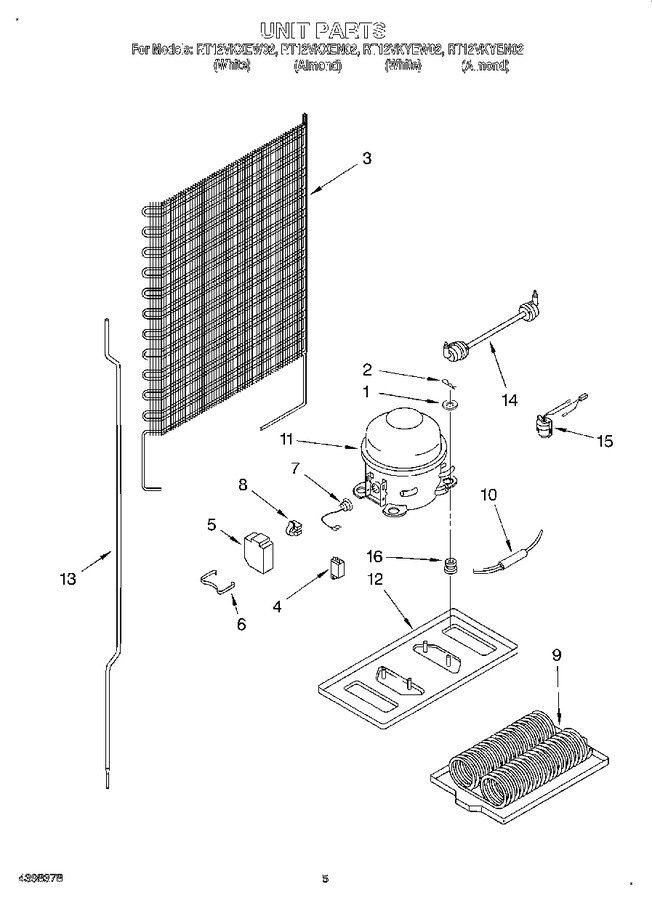

03 - Unit


04 - Door, Optional


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390505		Washer		Appelez-nous	-
2	4356336		Clip, Hitch Pin		Appelez-nous	-
3	4390572		Condenser		Appelez-nous	-
4	WPW10662129		Capacitor   (Replaces: 4356601)			Immediately	$ 52.97
5	4356946		Cover		Appelez-nous	-
6	4356951		Clip		Appelez-nous	-
7	2183409		Overload   (Replaces: 4390576)				$ 111.81
8	4356994		Relay		Appelez-nous	-
9	4390561		Evaporator				$ 260.43
10	4001		Drier   (Replaces: 4356675)			Immediately	$ 9.64
11	W10309989		Compressor (includes Items 4, 7, 8 & 10)   (Replaces: 4390574)			Immediately	$ 591.26
12	4390504		Unit Mounting Plate		Appelez-nous	-
13	4390597		Exchanger, Heat		Appelez-nous	-
14	4390562		Heater, Defrost		Appelez-nous	-
15	4390584		Bi-metal, Defrost		Appelez-nous	-
16	4356335		Grommet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
