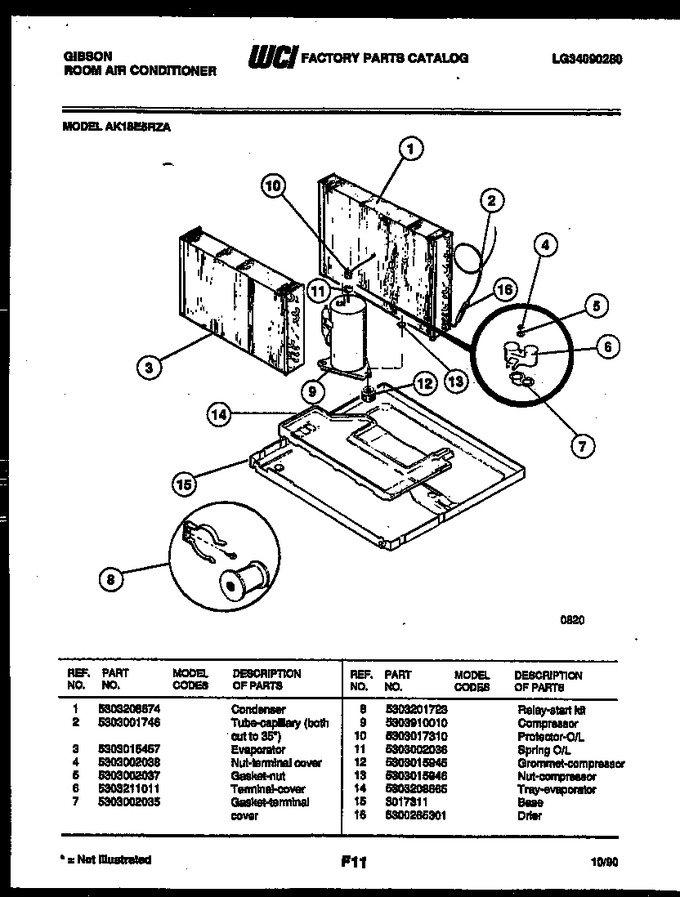

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303208674 | Condenser |
|
- | |||||
| 2 | 5303001746 | Tube-capillary (both Cut To 35``) |
|
- | |||||
| 3 | 5303015457 | Evaporator |
|
- | |||||
| 4 | 5303002038 | Nut-terminal Cover |
|
- | |||||
| 5 | 5303002037 | Gasket-nut |
|
- | |||||
| 6 | 5303211011 | Terminal-cover |
|
- | |||||
| 7 | 5303002035 | Gasket,terminal Cover |
|
- | |||||
| 8 | 5303201723 | Relay-start Kit |
|
- | |||||
| 9 | 5303910010 | Compressor |
|
- | |||||
| 10 | 5303017310 | Protector-o/l |
|
- | |||||
| 11 | 5303002036 | Spring O/l |
|
- | |||||
| 12 | 5303015945 | Grommet-compressor |
|
- | |||||
| 13 | 5303015946 | Nut-compressor |
|
- | |||||
| 14 | 5303208665 | Tray-evaporator |
|
- | |||||
| 15 | 3017311 | Base |
|
- | |||||
| 16 | 5300265301 | Drier |
|
