02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

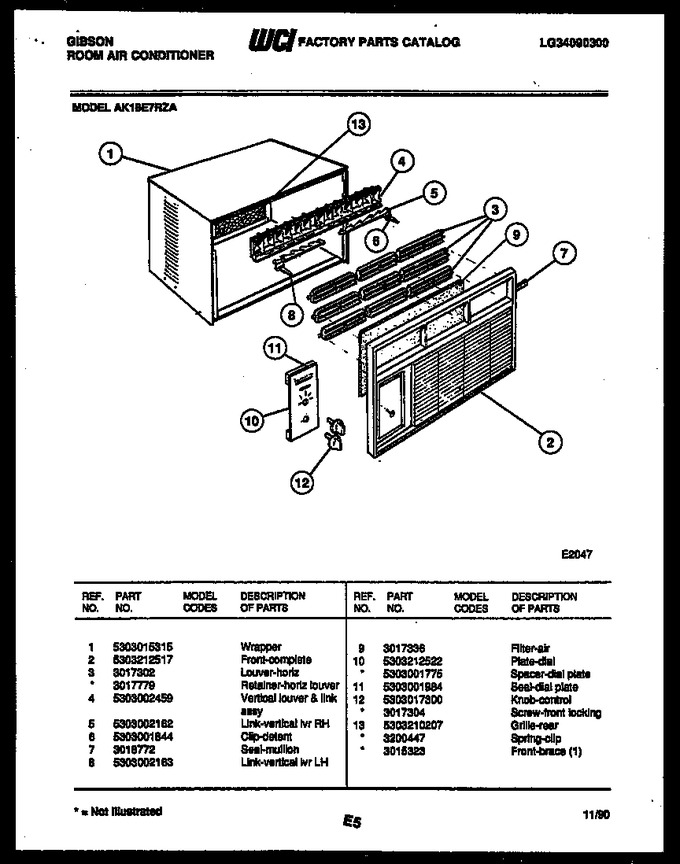

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303212517 | Front-complete |
|
- | |||||
| 3 | 3017302 | Louver-horiz |
|
- | |||||
| 4 | 5303002459 | Vertical Louver & Link Assy |
|
- | |||||
| 5 | 5303002162 | Link-vertical Lvr Rh |
|
- | |||||
| 6 | 5303001844 | Clip-detent |
|
- | |||||
| 7 | 3018772 | Seal Mullion |
|
- | |||||
| 8 | 5303002163 | Link-vertical Lvr Lh |
|
- | |||||
| 9 | 3017336 | Filter-air |
|
- | |||||
| 10 | 5303212522 | Plate-dial |
|
- | |||||
| 11 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 12 | 5303017300 | Knob-control |
|
- | |||||
| 13 | 5303210207 | Grille-rear |
|
- | |||||
| *31472 | 3200447 | Spring-clip |
|
- | |||||
| *31472 | 3015323 | Front-brace (1) |
|
- | |||||
| 10A | 5303001775 | Spacer-dial Plate (non-illustrated) |
|
- | |||||
| 12A | 3017304 | Screw-front Locking (non-illustrated) |
|
- | |||||
| 3A | 3017779 | Retainer-horiz Louver (non-illustrated) |
|
- |
