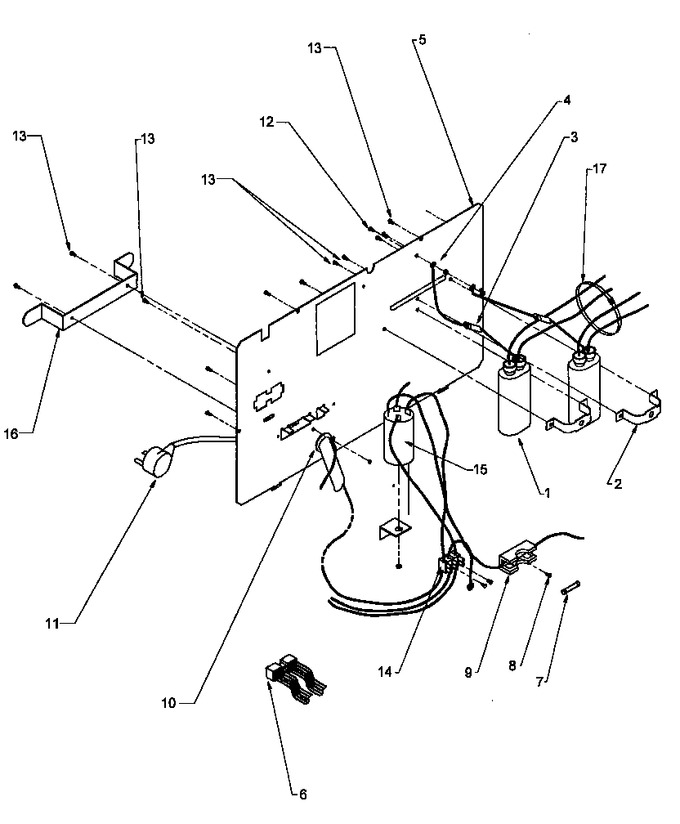

01 - Back Panel & Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Eleccompnt & Related Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 43267P01 | Hv Cap .728mfd 2000vx |
|
- | |||||
| 2 | 10825501 | Bracket |
|
- | |||||
| 3 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 4 | Y00000000 | See Note Nut-keps, Hex |
|
- | |||||
| 5 | 4160001001 | Ass`y, Back Access Pnl |
|
- | |||||
| 6 | 10798801 | Harness, Oven |
|
- | |||||
| 7 | WPM0805102 | Fuse 15 Amp (Replaces: M0805102) |
|
$ 21.25 | |||||
| 8 | A4539601 | Pop Rivet |
|
- | |||||
| 9 | 30928P01 | Fuse Blk .250 Term, 40 Deg Tab |
|
- | |||||
| 10 | M0370009 | Relief- Strain |
|
- | |||||
| 11 | 1734386115 | Power Cord Europe Uk |
|
- | |||||
| 12 | 5072-V | Screw K |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: M0211216) |
|
Immediately | $ 7.04 | ||||
| 14 | 46610P01 | Block Term 3 Pole 2100i |
|
- | |||||
| 15 | 1640000201 | Line Filt,16a, 250v, |
|
- | |||||
| 16 | 45531P01 | Brkt, Cord Wrap |
|
- | |||||
| 17 | 5140-FF | Tie-elect. |
|
- |
