SELECT A DIAGRAM
01 - Controls
02 - Door
03 - Electrical Components/blower
04 - Shelf/rear Access Panel
05 - Stirrer/light
SELECT A DIAGRAM
New Model Search:

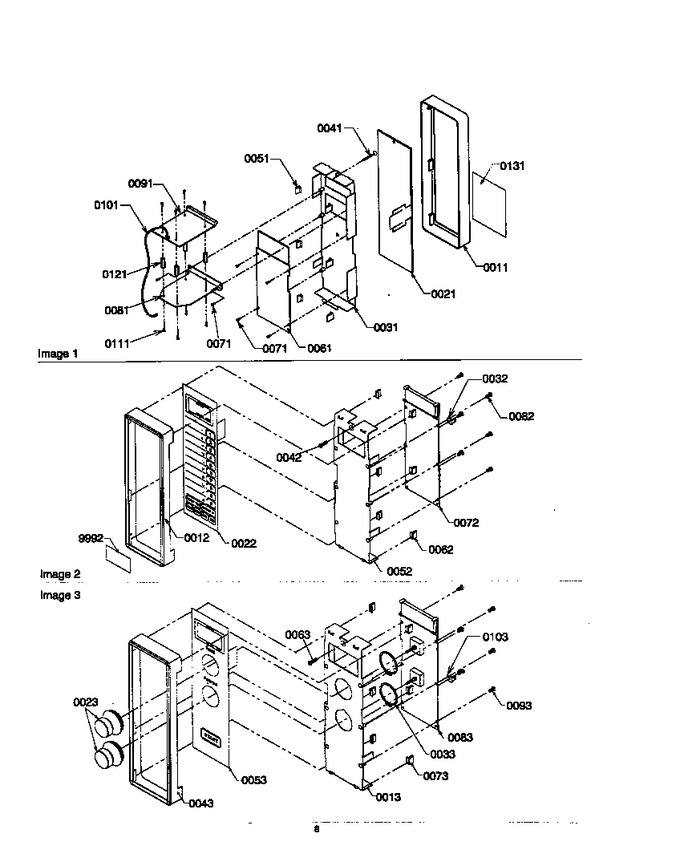

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 45398P04 | Frame, Cont Pnl |
|
- | |||||
| 21 | 4100011201 | Touch Panel |
|
- | |||||
| 31 | 4180031801 | Back Plate |
|
- | |||||
| 41 | 5149-P | Screw,no.8-32 X 1-1/4 Fl Hd Scre |
|
- | |||||
| 51 | 5522546002 | Clip |
|
- | |||||
| 61 | R0163268 | Controller |
|
- | |||||
| 71 | 5057-N | No.6 Pan Hd Machine Screw |
|
- | |||||
| 81 | 3000034301 | Brkt, Scanner Mt |
|
- | |||||
| 91 | 1840000101 | Net-scanner,circuit Board |
|
- | |||||
| 101 | 4520900601 | Connector, Plug |
|
- | |||||
| 111 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 121 | 5573221002 | Spacer, Hex (4 Per.) |
|
- | |||||
| 131 | 3131010401 | Keyboard, Removable |
|
- |
