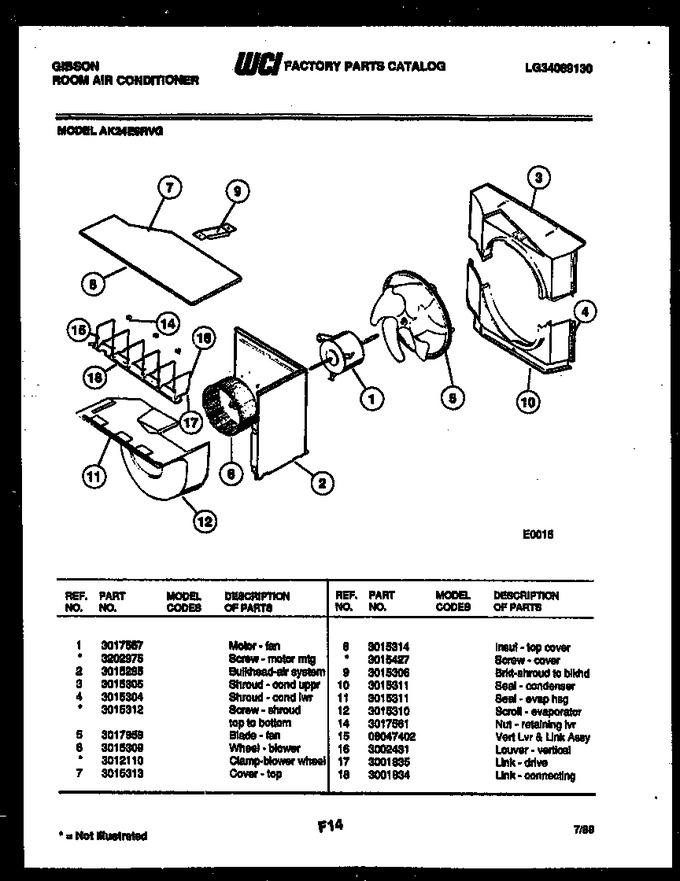

SELECT A DIAGRAM

02 - Cabinet Parts


04 - Air Handling Parts


05 - System Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015296		Bulkhead - Control		Appelez-nous	-
2	3015297		Door - Vent		Appelez-nous	-
3	3015298		Cable - Vent Door		Appelez-nous	-
4	3202999		Bracket-actuator		Appelez-nous	-
5	3015316		Panel-control		Appelez-nous	-
6	3015317		Motor-air Sweep		Appelez-nous	-
7	3017344		Switch - Selector				$ 166.42
8	3016764		Control		Appelez-nous	-
9	3015321		Divider - Vertical		Appelez-nous	-
10	3015425		Insulation-divider		Appelez-nous	-
11	3002362		Cord-service		Appelez-nous	-
12	3012039		Capacitor-dual		Appelez-nous	-
13	3015323		Strap-capacitor		Appelez-nous	-
14	3017914		Spacer - Control Bulb		Appelez-nous	-
15	3202717		Harness-wire		Appelez-nous	-
16	3017342		Screw - Actuator		Appelez-nous	-
17	3007754		Screw-control		Appelez-nous	-
18	3015427		Screw-vert. Divider		Appelez-nous	-
19	3015428		Insulation		Appelez-nous	-
20	3015294		Screw		Appelez-nous	-
21	3015427		Screws-strap		Appelez-nous	-
4A	3015299		Arm - Actuator (non-illustrated)		Appelez-nous	-
6A	3015318		Switch-slide (non-illustrated)		Appelez-nous	-
6B	3001773		Spacer-slide Switch (non-illustrated)		Appelez-nous	-
