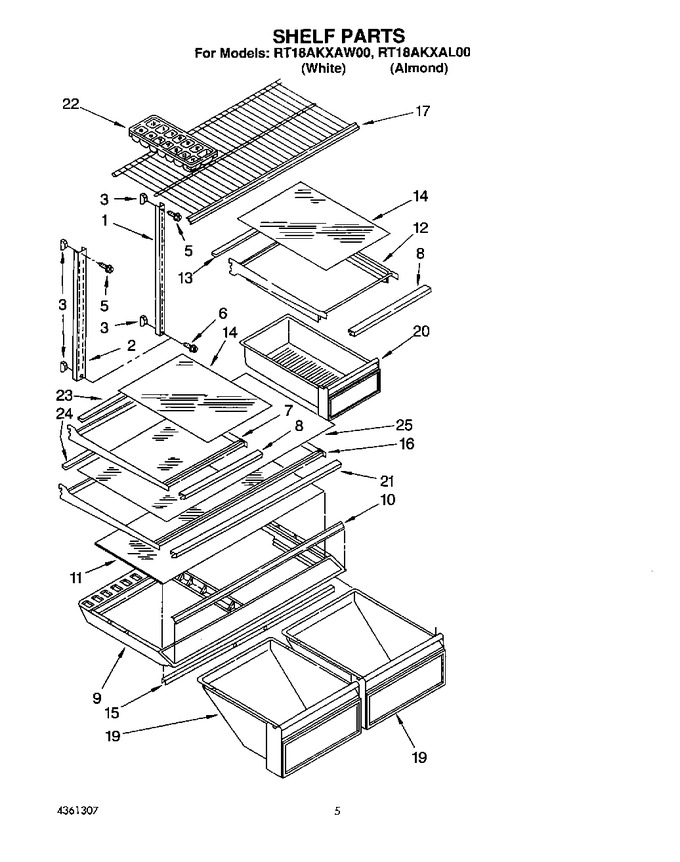

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 26.87
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1 (3)   (Replaces: 488163)				$ 6.79
7	1116693		Shelf, Cantilever		Appelez-nous	-
8	1124330		Trim, Shelf		Appelez-nous	-
9	2163205		Crisper Cover		Appelez-nous	-
10	1123002		Trim, Crisper Cover		Appelez-nous	-
11	2163208		Glass, Crisper Cover		Appelez-nous	-
12	1116703		Pan Shelf, Cantilever		Appelez-nous	-
13	1118119		Retainer, Glass		Appelez-nous	-
14	2163210		Glass, Meat Cover		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1116708)				$ 87.50
16	1116688		Shelf, Full Cantilever		Appelez-nous	-
17	1116722		Shelf, Freezer		Appelez-nous	-
19	2163207		Pan, Crisper		Appelez-nous	-
20	2163212		Pan, Meat		Appelez-nous	-
21	1124333		Trim, Full Shelf		Appelez-nous	-
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 41.00
23	1115165		Reflector		Appelez-nous	-
24	2148577		Reflector		Appelez-nous	-
25	2163231		Glass, Shelf Full		Appelez-nous	-
