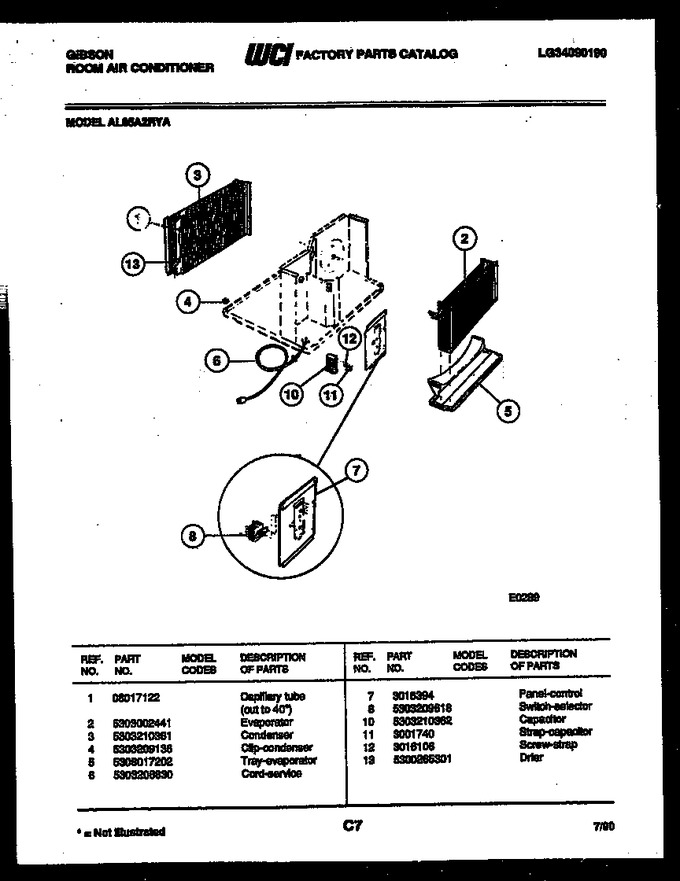

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08017122 | Capillary Tube (cut To 40``) |
|
- | |||||
| 2 | 5303002441 | Evaporator |
|
- | |||||
| 3 | 5303210361 | Condenser |
|
- | |||||
| 4 | 5303209136 | Clip-condenser |
|
- | |||||
| 5 | 5308017202 | Tray-evaporator |
|
- | |||||
| 6 | 5303206830 | Cord-service |
|
- | |||||
| 7 | 3016394 | Panel-control |
|
- | |||||
| 8 | 5303209618 | Switch-selector |
|
- | |||||
| 10 | 5303210362 | Capacitor |
|
- | |||||
| 11 | 3001740 | Strap-capacitor |
|
- | |||||
| 12 | 3016106 | Screw-strap |
|
- | |||||
| 13 | 5300265301 | Drier |
|
$ 284.30 |
