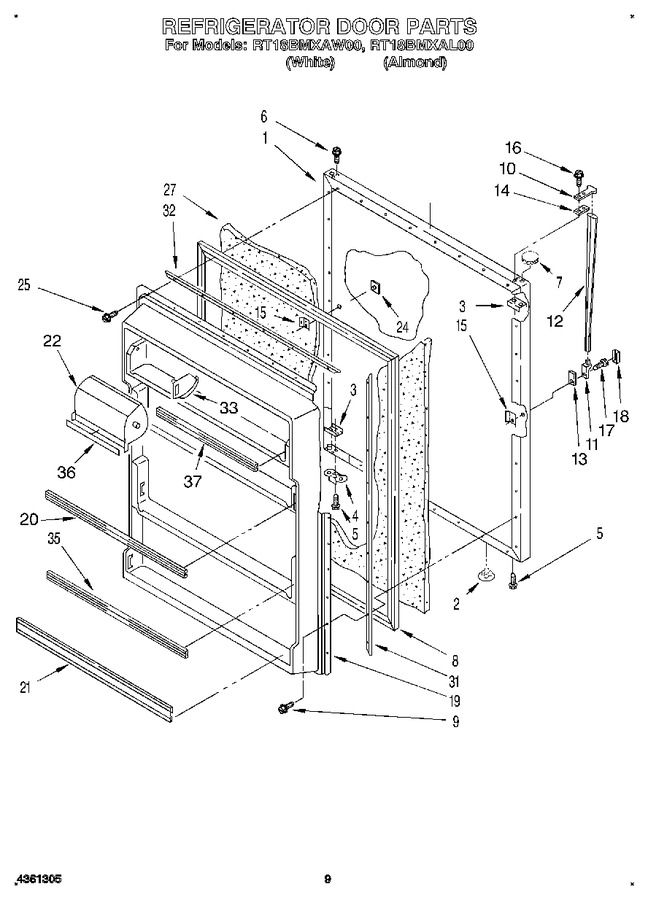

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116578		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
1	1116575		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (2)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
8	1116734		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
10	944157		Handle End, Top		Appelez-nous	-
11	935105		Handle End, Bottom				$ 32.80
12	1109181		Handle, Center		Appelez-nous	-
13	935076		Shim, Handle		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 6.75
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
18	987873		Cover, End Cap		Appelez-nous	-
19	2160165		Interior Door Panel		Appelez-nous	-
20	2163226		Trim, Door Shelf		Appelez-nous	-
21	2163227		Trim, Door Shelf		Appelez-nous	-
22	2163223		Compartment Door, Utility		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.66
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.01
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
31	1115136		Retainer, Gasket Side (2)		Appelez-nous	-
32	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
33	2160051		Hinge Pin, Center		Appelez-nous	-
35	2163224		Trim, Door Shelf		Appelez-nous	-
36	1124347		Trim, Compartment Door		Appelez-nous	-
37	2163235		Trim, Compartment Door		Appelez-nous	-
