SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door


08 - Icemaker, Literature/optional

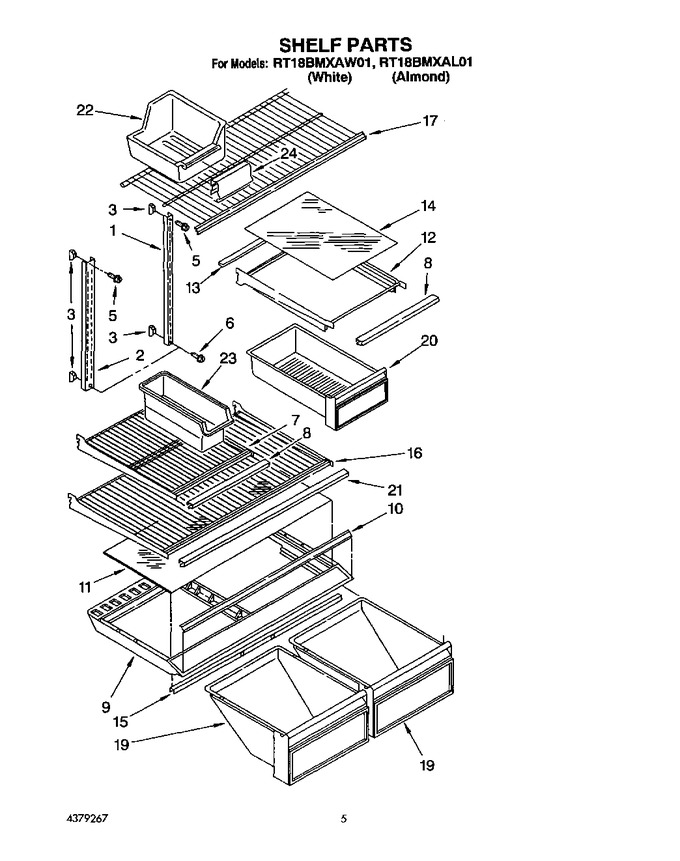

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 26.87
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1   (Replaces: 488163)				$ 6.79
7	2163920		Shelf, Cantilever		Appelez-nous	-
8	1124330		Trim, Shelf		Appelez-nous	-
9	2163205		Crisper Cover		Appelez-nous	-
10	2172715		Trim, Crisper Cover		Appelez-nous	-
11	2163208		Glass, Crisper Cover		Appelez-nous	-
12	1116703		Pan Shelf, Cantilever		Appelez-nous	-
13	1118119		Retainer, Glass		Appelez-nous	-
14	2163210		Glass, Meat Cover		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2172750)				$ 87.50
16	2160873		Shelf, Full Cantilever		Appelez-nous	-
17	1116722		Shelf, Freezer		Appelez-nous	-
19	2163207		Pan, Crisper		Appelez-nous	-
20	2163212		Pan, Meat		Appelez-nous	-
21	1124333		Trim, Full Shelf		Appelez-nous	-
22	W11625904		Pan, Ice Cube   (Replaces: 837141)				$ 58.14
23	WP982704		Container   (Replaces: 1116917)				$ 27.90
24	837122		Trim, Ice Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
