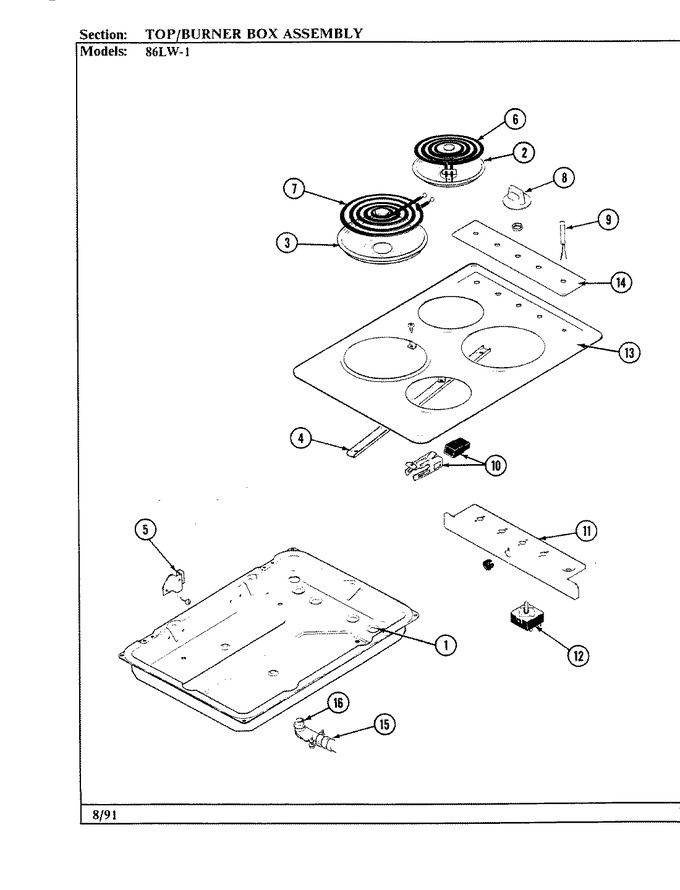

01 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F143-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 2 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 01 |
|
Immediately | $ 12.05 | |||
| 3 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 01 |
|
Immediately | $ 15.56 | |||
| 4 | 3802F070-80 | Brace, Top | 01 |
|
- | ||||
| 5 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 5 | 3801F183-45 | Bracket, Main Top Support | 01 |
|
- | ||||
| 5 | 7111P002-60 | Clamp, Wire 3/4 | 01 |
|
- | ||||
| 6 | WP660532 | Element (6``) (Replaces: 7406P037-60) | 01 |
|
Immediately | $ 36.90 | |||
| 7 | WP3191454 | Element (8``) (Replaces: 7406P039-60) | 03 |
|
$ 163.63 | ||||
| 7 | WP3191454 | Element, Giant Surface (Replaces: 7406P030-60) | 01 |
|
$ 163.63 | ||||
| 8 | 7737P029-60 | Knob, Switch | 01 |
|
$ 18.07 | ||||
| 9 | Y04000016 | Light, Signal | 01 |
|
- | ||||
| 9 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 01 |
|
$ 4.29 | ||||
| 9 | 8112P001-60 | Plate, Burner Box | 01 |
|
- | ||||
| 10 | 7112P026-60 | Clip, Unit Block | 01 |
|
- | ||||
| 10 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 01 |
|
Immediately | $ 14.48 | |||
| 10 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 11 | 8018P001-60 | Sleeve, Tube | 01 |
|
- | ||||
| 11 | 3604F133-80 | Shield Switch Wiring | 01 |
|
- | ||||
| 12 | W10900107 | Switch, Infinite (Replaces: 7403P027-60) | 01 |
|
Immediately | $ 51.87 | |||
| 12 | 7103P021-60 | Nut, Switch | 01 |
|
- | ||||
| 13 | 2002W063-81 | Top Assy, Main Wht | 01 |
|
- | ||||
| 14 | 7720P153-60 | Trim, Control Panel (wht) | 01 |
|
- | ||||
| 14 | 8008P014-60 | Grommet, Nylon | 01 |
|
- | ||||
| 15 | 3801F072-45 | Bracket, Conduit | 01 |
|
- | ||||
| 15 | 3414F035-44 | Tubing, Conduit (flexible) | 01 |
|
- | ||||
| 16 | 8018P001-60 | Sleeve, Tube | 01 |
|
- | ||||
| 16 | 7417P004-60 | Connector, Right Ang | 01 |
|
- |
