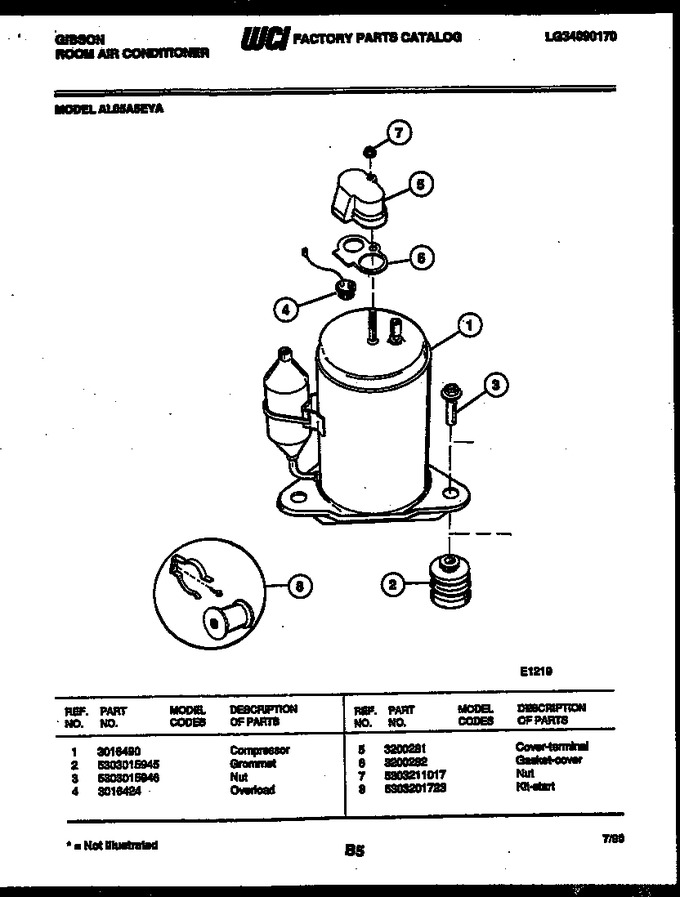

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016490 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 3016424 | Overload |
|
- | |||||
| 5 | 3200281 | Cover-terminal |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 5303211017 | Nut |
|
- | |||||
| 8 | 5303201723 | Kit-start |
|
- |
