02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

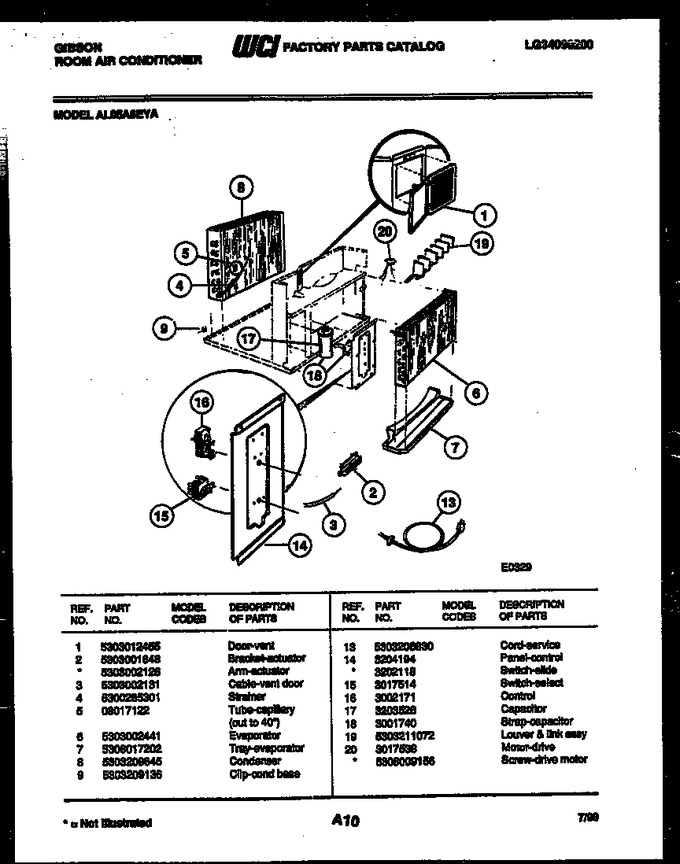

| 1 | 5303012455 | Door Vent |
|
- | |||||
| 2 | 5303001848 | Bracket-actuator |
|
- | |||||
| 3 | 5303002131 | Cable-vent Door |
|
- | |||||
| 4 | 5300265301 | Strainer |
|
$ 284.30 | |||||
| 5 | 08017122 | Tube-capillary (cut To 40``) |
|
- | |||||
| 6 | 5303002441 | Evaporator |
|
- | |||||
| 7 | 5308017202 | Tray-evaporator |
|
- | |||||
| 8 | 5303209645 | Condenser |
|
- | |||||
| 9 | 5303209136 | Clip-cond Base |
|
- | |||||
| 13 | 5303206830 | Cord-service |
|
- | |||||
| 14 | 3204194 | Panel - Control |
|
- | |||||
| 15 | 3017514 | Switch-select |
|
- | |||||
| 16 | 3002171 | Control |
|
- | |||||
| 17 | 3203526 | Capacitor |
|
- | |||||
| 18 | 3001740 | Strap-capacitor |
|
- | |||||
| 19 | 5303211072 | Louver & Link Assy |
|
- | |||||
| 20 | 3017538 | Motor-drive |
|
- | |||||
| *26529 | 5308009156 | Screw-drive Motor |
|
- | |||||
| 14A | 3202118 | Switch-slide (non-illustrated) |
|
- | |||||
| 2A | 5303002126 | Arm-actuator (non-illustrated) |
|
- |
