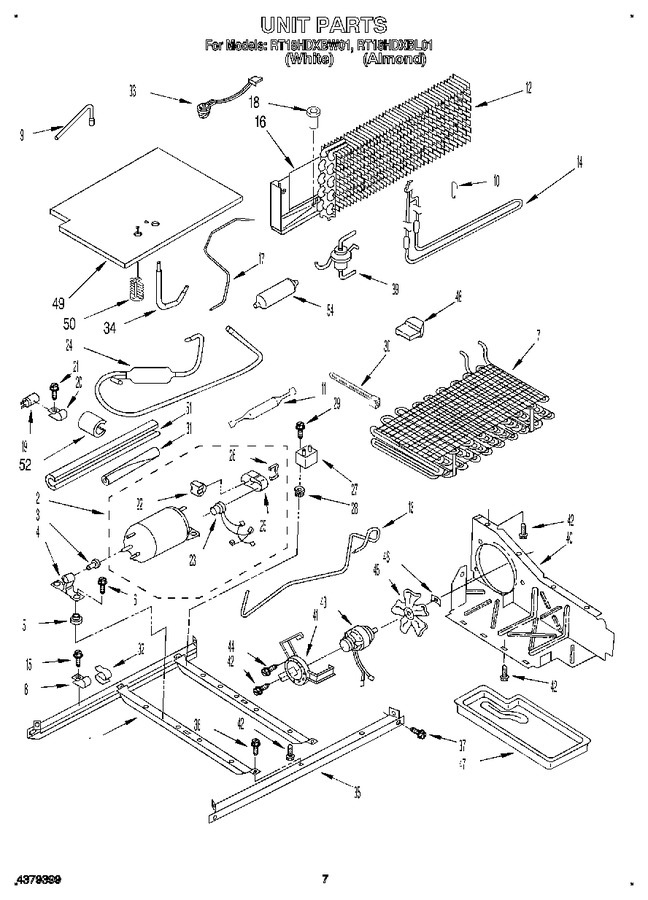

06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159747		Unit, Frame		Appelez-nous	-
2	2154564		Compressor Kit (includes Items 5, 4, 22, 23, 25, 26, 27)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor		Appelez-nous	-
6	489334		Screw		Appelez-nous	-
7	2154008		Condenser Assembly		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	2154090		Tube, Process		Appelez-nous	-
10	2149120		Support, Heater		Appelez-nous	-
11	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 47.31
12	2153977		Evaporator		Appelez-nous	-
13	2154028		Tube, Discharge		Appelez-nous	-
14	2162020		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	2153973		Drain Pan & Heat Shield		Appelez-nous	-
17	2159635		Tube, Condenser To Fluid Valve		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	1108065		Capacitor, Start		Appelez-nous	-
20	1108033		Tube Clamp		Appelez-nous	-
21	WP489128		Screw   (Replaces: 488500)				$ 9.79
22	N/A		Relay, Start (see Overload)		Appelez-nous	-
23	2159611		Overload (production (includes Relay))		Appelez-nous	-
23	2154945		Overload (service (includes Relay))		Appelez-nous	-
24	2169366		Muffler		Appelez-nous	-
25	2154452		Terminal Cover		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor   (Replaces: 1118576)			Immediately	$ 52.97
28	509812		Screw Grommet		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
30	WPW10339879		Strap   (Replaces: 2155774)				$ 7.11
31	2159751		Sleeve		Appelez-nous	-
32	548745		Clip, Wire		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 43.10
34	2159636		Tube Fluid Valve To Heat Loop		Appelez-nous	-
35	1116622		Unit, Rail		Appelez-nous	-
36	WP489427		Screw, 1/4-28 X 1/2   (Replaces: 489339)				$ 6.72
37	489340		Screw		Appelez-nous	-
39	2169345		Fluid Control Valve		Appelez-nous	-
40	2169432		Air, Baffle		Appelez-nous	-
41	2162060		Fan, Mounting Bracket		Appelez-nous	-
42	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.05
43	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 79.34
44	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 11.75
45	2169191		Fan Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
47	1116604		Tray, Evaporator		Appelez-nous	-
48	1118017		Wedge, Air Baffle		Appelez-nous	-
49	2160517		Cover, Unit Bottom		Appelez-nous	-
50	489396		Clip				$ 9.65
51	2169365		Sleeve		Appelez-nous	-
52	WP2158826		Dampener   (Replaces: 515497)				$ 1.56
54	876764		Valve, Access(3/16``)			Immediately	$ 82.22
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 117.64
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
54	2169353		Reservoir Assy.		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 115.28
