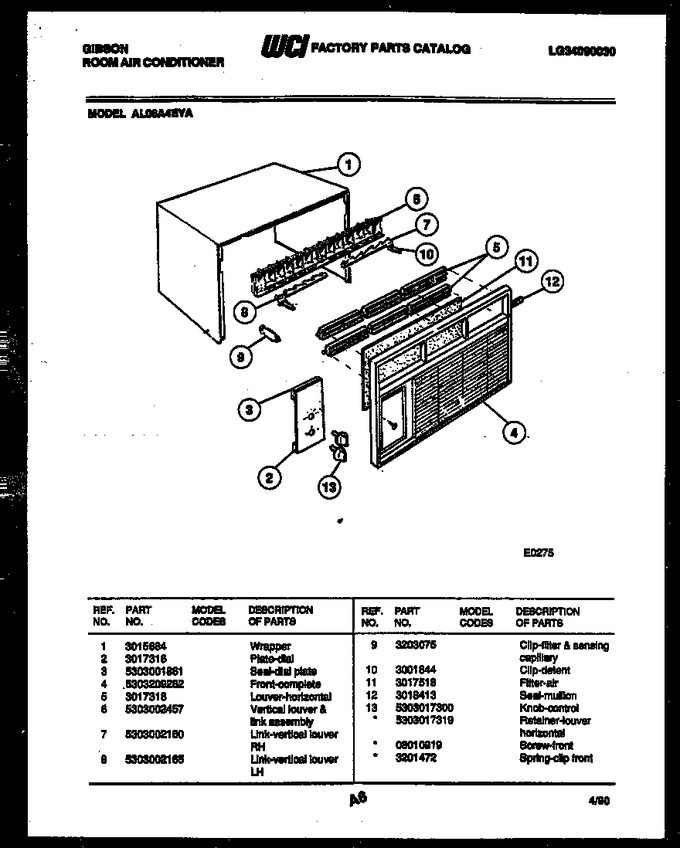

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 3017316 | Plate-dial |
|
- | |||||
| 3 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 4 | 5303209262 | Front-complete |
|
- | |||||
| 5 | 3017318 | Louver-horizontal |
|
- | |||||
| 6 | 5303002457 | Vertical Louver & Link Assembly |
|
- | |||||
| 7 | 5303002160 | Link-vertical Louver Rh |
|
- | |||||
| 8 | 5303002165 | Link Vertical Louver Lh |
|
- | |||||
| 9 | 3203075 | Clip-filter & Sensing Capillary |
|
- | |||||
| 10 | 3001844 | Clip-detent |
|
- | |||||
| 11 | 3017518 | Filter-air |
|
- | |||||
| 12 | 3018413 | Seal-mullion |
|
- | |||||
| 13 | 5303017300 | Knob-control |
|
- |
