SELECT A DIAGRAM

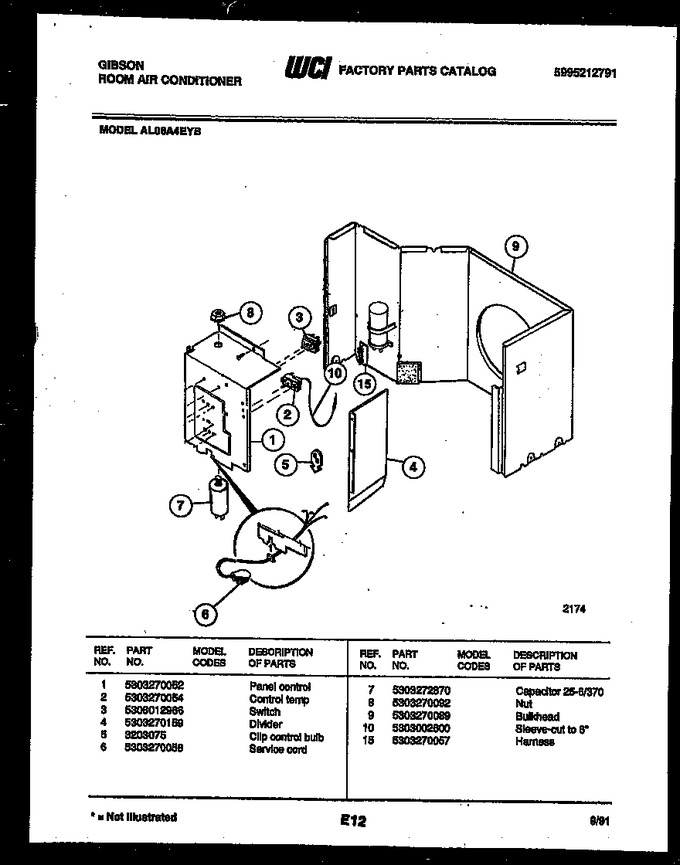

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270052 | Panel Control |
|
- | |||||
| 2 | 5303270054 | Control Temp |
|
- | |||||
| 3 | 5308012966 | Switch |
|
- | |||||
| 4 | 5303270159 | Divider |
|
- | |||||
| 5 | 3203075 | Clip-control Bulb |
|
- | |||||
| 6 | 5303270058 | Service Cord |
|
- | |||||
| 7 | 5303272870 | Capacitor 25-6/370 |
|
- | |||||
| 8 | 5303270092 | Nut |
|
- | |||||
| 9 | 5303270089 | Bulkhead |
|
- | |||||
| 10 | 5303002600 | Sleeve-cut To 6`` |
|
- | |||||
| 15 | 5303270057 | Harness |
|
- |
