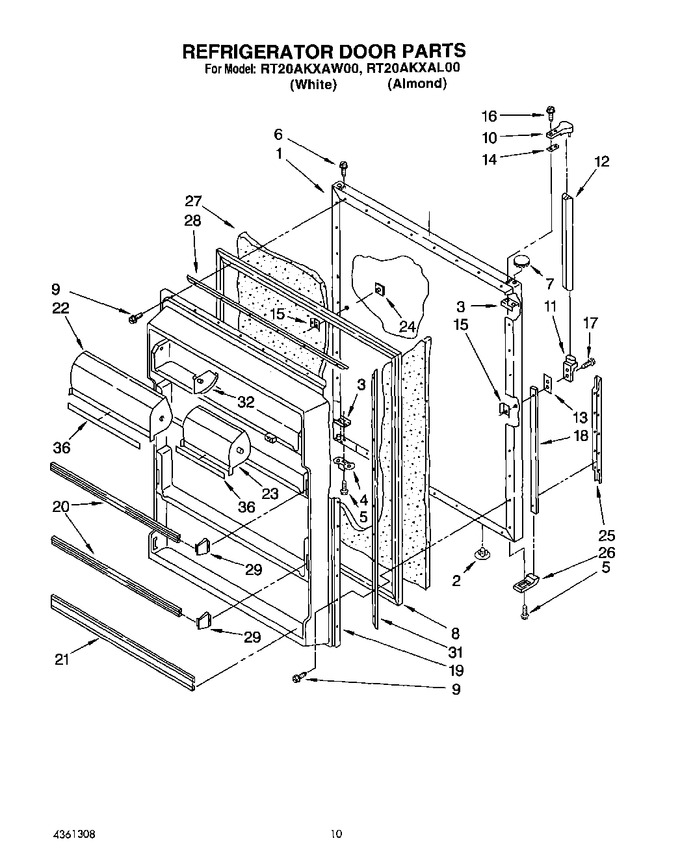

08 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1122658		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
1	1122549		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 1122828)				$ 243.50
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
10	944157		End Cap, Top		Appelez-nous	-
11	936930		Handle End, Center		Appelez-nous	-
12	1124376		Handle, Center		Appelez-nous	-
13	935076		Shim, Handle		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 6.75
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
18	1118080		Retainer, Insert		Appelez-nous	-
19	2156208		Interior Door Panel		Appelez-nous	-
20	1120833		Trim, Door (2)		Appelez-nous	-
21	2163348		Trim, Door		Appelez-nous	-
22	2163945		Compartment Door, Utility		Appelez-nous	-
23	2163942		Compartment, Butter Door		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.66
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1124378		Insert, Handle		Appelez-nous	-
26	1105804		Endcap, Retainer		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	1122552		Gasket, Retainer		Appelez-nous	-
29	4318297		Endcap, Trim (4)   (Replaces: 1106861)				$ 20.94
31	1122551		Gasket, Retainer		Appelez-nous	-
32	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 6.89
36	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
36	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
36	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
36	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
36	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
36	833938		Kit, Terminal Connector				$ 7.26
36	2163344		Trim, Comp. Door		Appelez-nous	-
36	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
36	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
36	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 208.40
36	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
36	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
36	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
36	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
36	350942		Primer White (13 Oz. Spray Can)				$ 80.69
36	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
36	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
36	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
36	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
	LIT2163204		Use & Care Guide		Appelez-nous	-
	1129316		Imkit   (Replaces: 1129303)			Immediately	$ 127.81
	1117510		Torx Key				$ 5.84
	LIT4361308		Parts List		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2163296		Energy Guide		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
