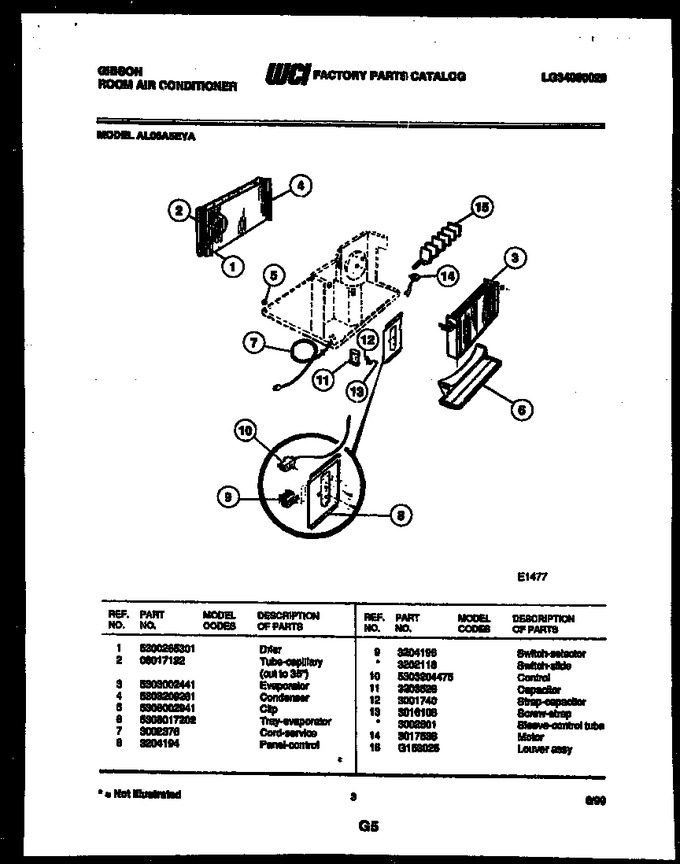

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 2 | 08017122 | Tube-capillary Cut To 35`` |
|
- | |||||
| 3 | 5303002441 | Evaporator |
|
- | |||||
| 4 | 5303209261 | Condenser |
|
- | |||||
| 5 | 5308002941 | Clip |
|
- | |||||
| 6 | 5308017202 | Tray-evaporator |
|
- | |||||
| 7 | 3002376 | Cord-service |
|
- | |||||
| 8 | 3204194 | Panel - Control |
|
- | |||||
| 9 | 3204196 | Switch-selector |
|
- | |||||
| 10 | 5303204475 | Control |
|
- | |||||
| 11 | 3203526 | Capacitor |
|
- | |||||
| 12 | 3001740 | Strap-capacitor |
|
- | |||||
| 13 | 3016106 | Screw-strap |
|
- | |||||
| 14 | 3017538 | Motor |
|
- | |||||
| 15 | G153025 | Louver Assy |
|
- | |||||
| 13A | 3002601 | Sleeve-control Tube (non-illustrated) |
|
- | |||||
| 9A | 3202118 | Switch-slide (non-illustrated) |
|
- |
